EBOX-3310MX GPIO

EBOX-3310MX-G
EBOX-3310MX-GC22
EBOX-3310MX-GC85
EBOX-3310MX-JSK

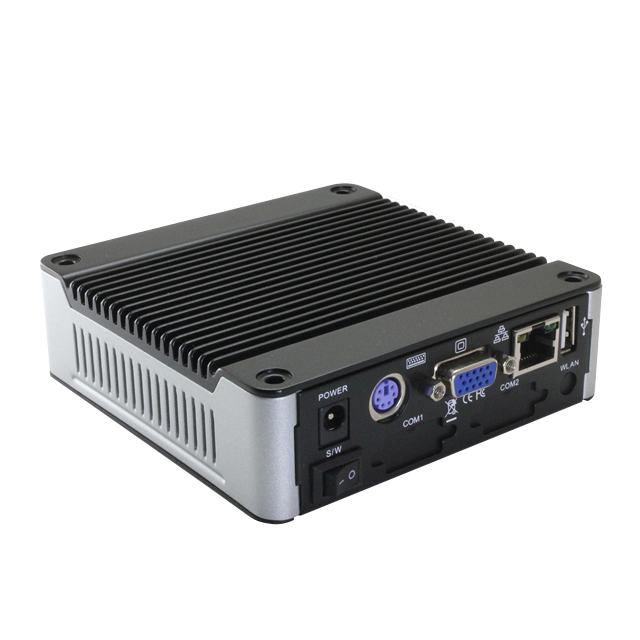

Integrates a Vortex86MX+ 933MHz SoC, 1GB of DDR2 RAM and integrated graphics in an all-in-one module. Supports 24-bit GPIO and RS-232 ports, 100 x 100mm VESA, PXE diskless boot and auto power on.

Download
Processor DM&P 32-bit x86 Vortex86MX+ 933MHz SoC
BIOS AMI BIOS
Memory 1GB DDR2 onboard
VGA Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1200 pixels)
Ethernet RDC R6040 10/100 Mbps LAN x1 (RJ-45 connector, Built-in PXE diskless boot)
USB USB V2.0 x3 (Front x2, Rear x1)
SD card slot SD Slot x1 IDE Primary Channel
SATA SATA Gen1 x1, 7-pin internal
RS-232 D-Sub 9-pin connector x3
RS-485 D-Sub 9-pin connector x1
RS-422 D-Sub 9-pin connector x1
GPIO 24-bit GPIO x1
Auto Power On Support
Power requirement DC +8V~+24V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 500g
Operation Temperature 0~60℃
Certifications CE, FCC, VCCI
OS Support Windows XP, XPe, CE6.0, Compact 7 and Linux

Model Type SATA 24-bit GPIO RS-232 RS-485 RS-422 Auto Power On
EBOX-3310MX-G   1x       Support
EBOX-3310MX-GC22   1x 2x   1x Support
EBOX-3310MX-GC85   1x 2x 1x   Support
EBOX-3310MX-JSK 1x 1x 3x     Support
Model Type CPU 24-bit GPIO COM
EBOX-3310 MX:
Vortex86MX+
G:
24-bit GPIO x1
C22:
RS-422 x1 + RS-232 x2
    JSK:
24-bit GPIO x1
+ RS-232 x3 + SATA x1
C85:
RS-485 x1 + RS-232 x2

The Vortex86 SoC Series are 32-bit x86-architecture microprocessors that are compatible with Windows, Linux and most popular 32-bit Real Time Operating Systems. The CPU clock ranges from a single core 300MHz to dual core 1GHz, and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB ...etc, and most of the legacy I/O interface into one single BGA package.

Website: http://www.vortex86.com/
