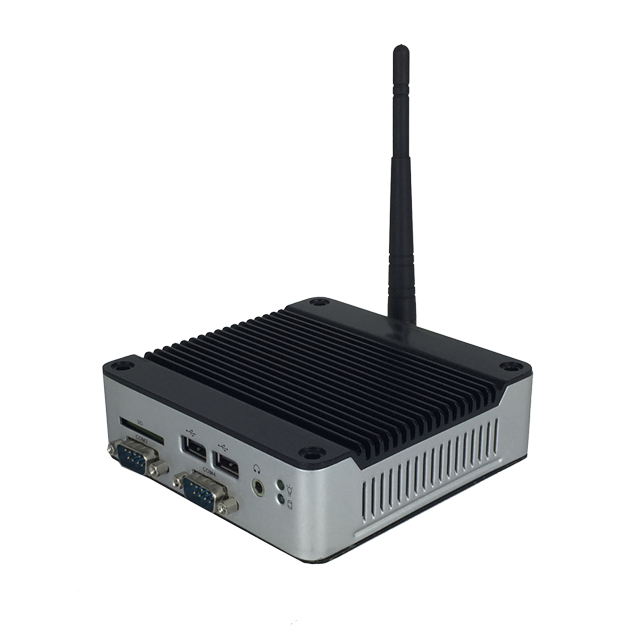

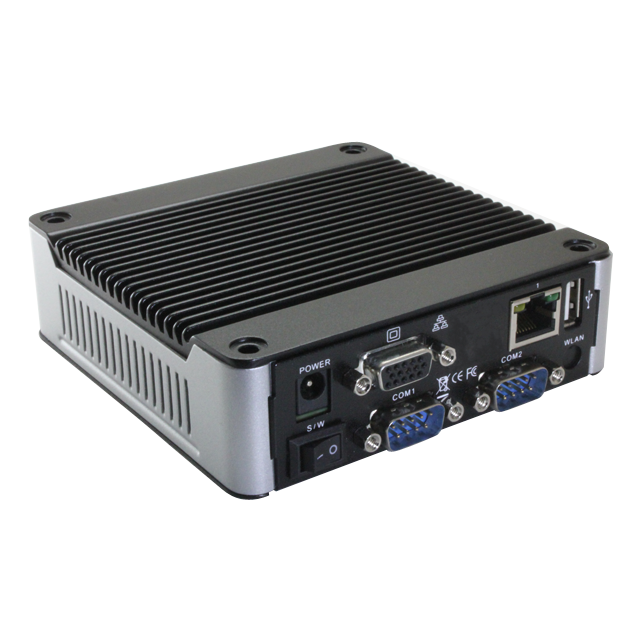

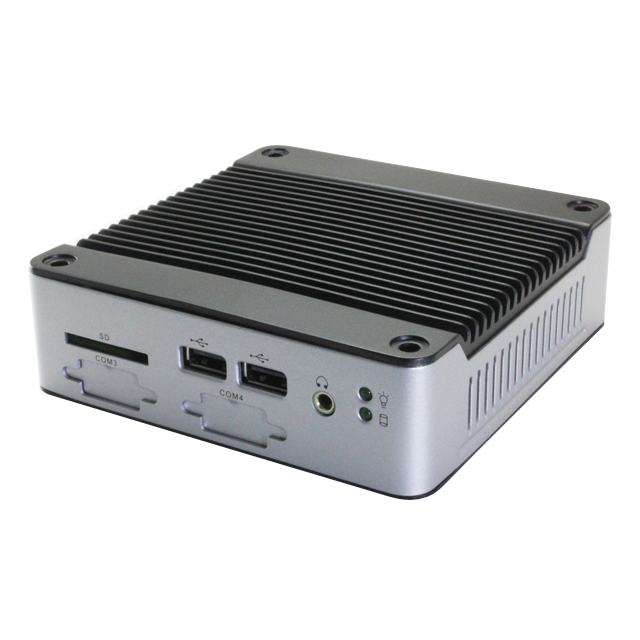

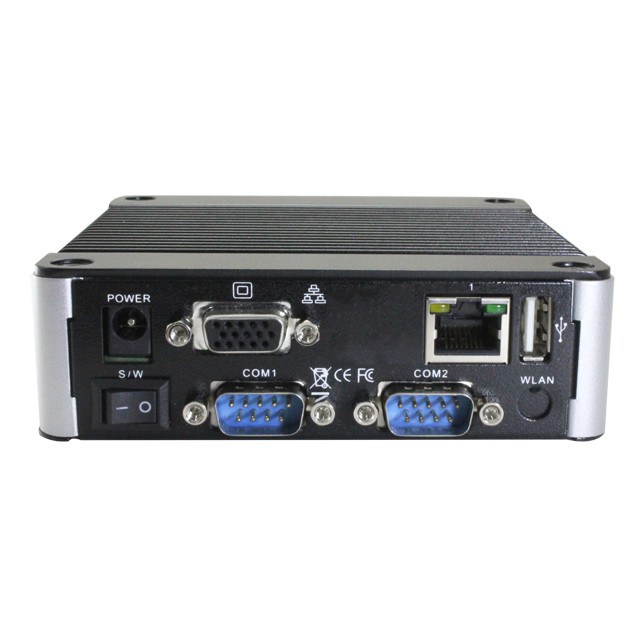

EB-336x w/RS-422

EB-336x-222
EB-336x-221C1
EB-336x-221C3
EB-336x-222C2
EB-336x-L2222
EB-336x-L2221C1
EB-336x-L2221C3
EB-336x-L2222C2

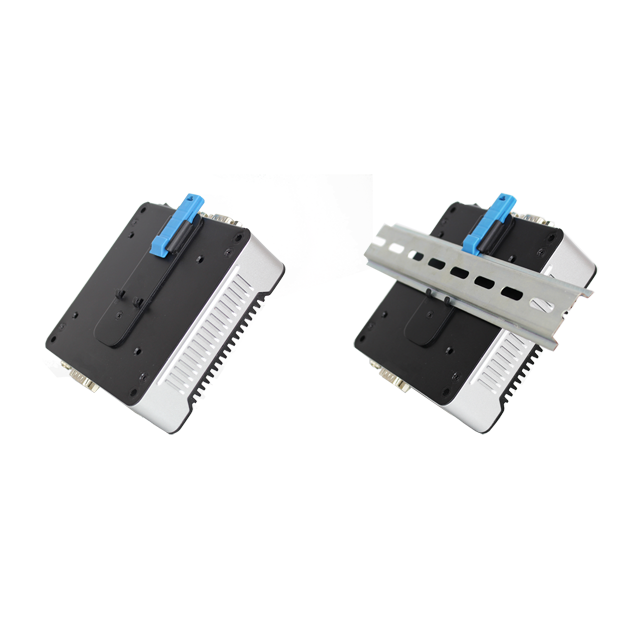

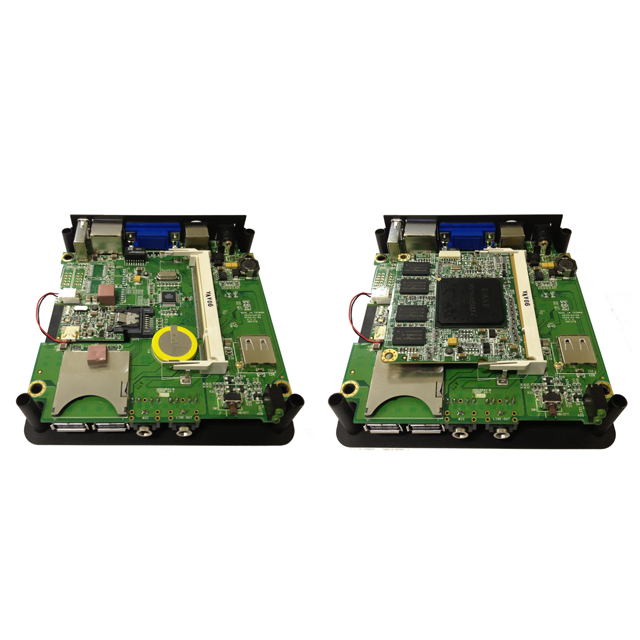

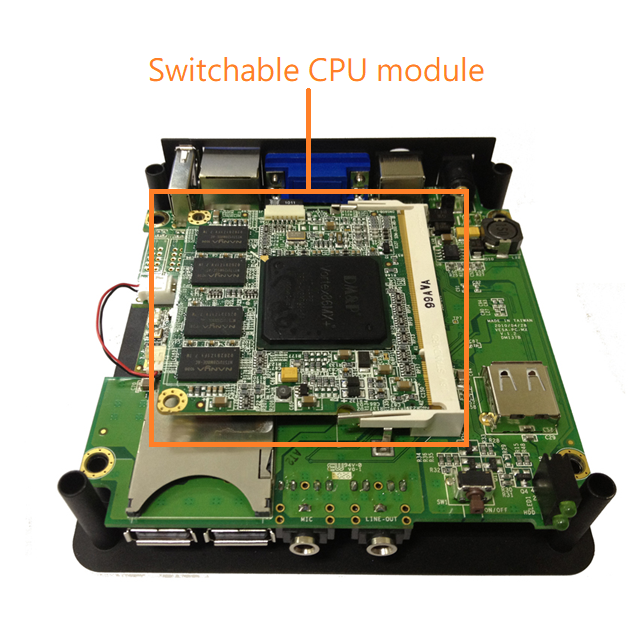

A fanless, 32-bit, x86-architecture, Vortex86DX3 1.0GHz Dual-core SoC All-in-One Module with 1GB/2GB DDR3 RAM. Supports: RS-232/422 ports, Dual LAN ports, SATA, SD card, mPCIe. 100 x 100mm VESA mounts, DIN Rail, and -20~+70℃ temperature range Supported.

Download
Processor DM&P 32-bit x86 Dual Core Vortex86DX3 1.0GHz SoC
BIOS AMI BIOS
Memory 1GB/2GB DDR3-1600MHz onboard
VGA Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1080 pixels)
Ethernet Realtek 8111F GbE x1/RDC R6040 10/100 Mbps LAN x1 (RJ-45 connector, Built-in PXE diskless boot)

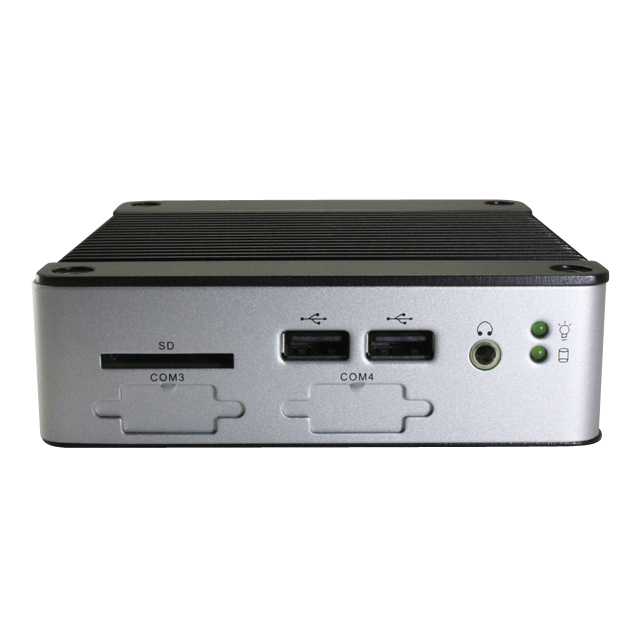

USB USB V2.0 x3 (Front x2, Rear x1)
HD Audio Realtek ALC262VD Line-out
SD card slot SD Slot x1 (SD, SDHC)/Internal SD (Optional)
SATA SATA Gen1 x1, 7-pin internal
mPCIe Standard Mini PCIe x1
RS-232 D-Sub 9-pin connector up to 3 ports
RS-422 D-Sub 9-pin connector up to 2 ports
Auto Power On Support
Power requirement DC +8V~+24V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 510g
Operation Temperature 0~60℃/-20~+70℃
Certifications CE, FCC, VCCI
OS Support Windows 7, WES7, Windows XP, XPe, CE6.0, Compact 7 and Linux

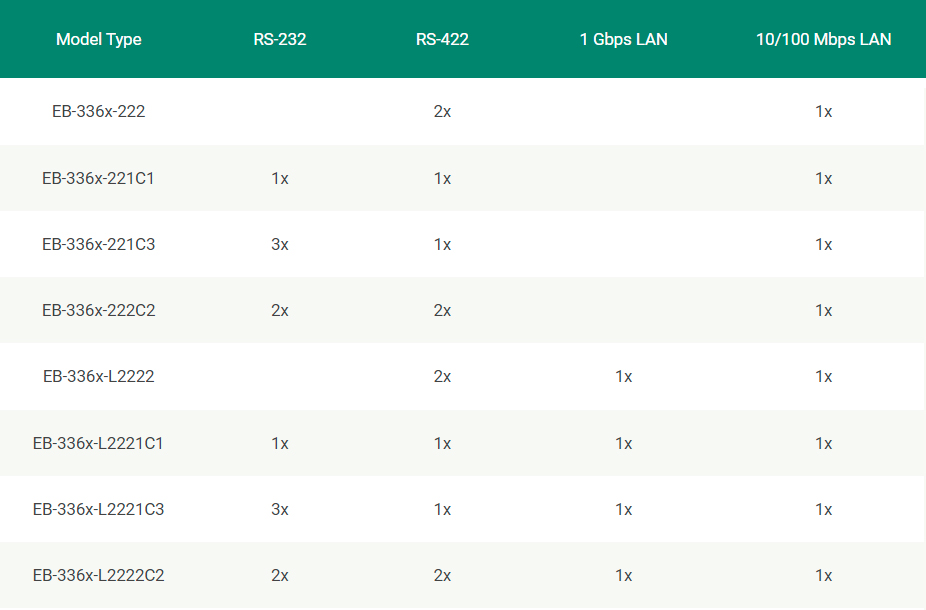

Model Type RS-232 RS-422 1 Gbps LAN 10/100 Mbps LAN
EB-336x-222   2x   1x
EB-336x-221C1 1x 1x   1x
EB-336x-221C3 3x 1x   1x
EB-336x-222C2 2x 2x   1x
EB-336x-L2222   2x 1x 1x
EB-336x-L2221C1 1x 1x 1x 1x
EB-336x-L2221C3 3x 1x 1x 1x
EB-336x-L2222C2 2x 2x 1x 1x
Model Type CPU DRAM LAN COM (MAX. 4 COM) mPCIe Display port
EB-33 6:
Vortex86DX3
0:
1GB
L2:
LAN x2
SS:
None
P:
mPCIe x1
DMI:
HDMI x1
    2:
2GB
  None
LAN x1
C1~C4:
RS-232 x1~x4
None
SATA x1
None
VGA x1
          851~854:
RS-485 x1~x4

          221~222:
RS-422 x1~x2

          G2:
8-bit GPIO x2

          B1:
CANbus x1




Model Type CPU DRAM LAN USB COM (MAX. 4 COM) I/O interface
EB-33 6:
Vortex86DX3
0:
1GB
L3:
LAN x3
U4:
USB 2.0 x4
SS:
None
SIM:
SIM card slot x1
    2:
2GB
L2:
LAN x2
None
USB 2.0 x3
C1~C4:
RS-232 x1~x4
CF:
CF card slot x1
        None
LAN x1
  851~854:
RS-485 x1~x4
PRN:
Printer port x1
            221~222:
RS-422 x1~x2

            G2:
8-bit GPIO x2

            B1:
CANbus x1


The Vortex86 SoC Series are 32-bit x86-architecture microprocessors that are compatible with Windows, Linux and most popular 32-bit Real Time Operating Systems. The CPU clock ranges from a single core 300MHz to dual core 1GHz, and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB ...etc, and most of the legacy I/O interface into one single BGA package.

Website: http://www.vortex86.com/



Benchmark & Power Consumption index
