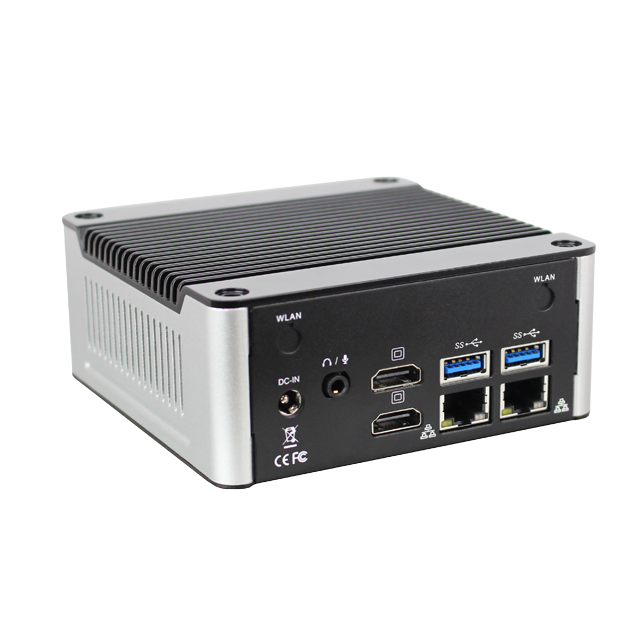

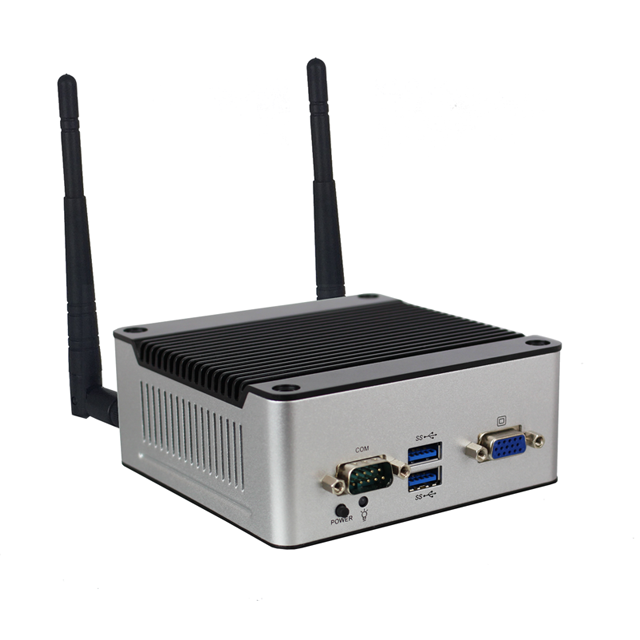

EBOX-ALJ3455

EBOX-ALJ3455

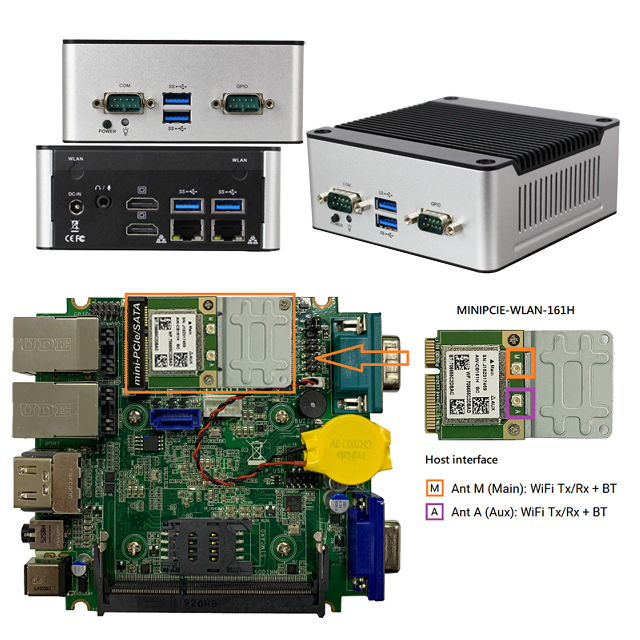

Equipped with an Intel® Apollo Lake J3455 Quad Core 1.50GHz processor. Supports: memory up to 8GB DDR3L, 3 Display outputs, USB 3.0 x 6, Mini PCIe slot, SIM card holder, RS-232/485/422 port, VESA mount, and a DIN Rail.

Download
Processor Intel® Apollo Lake J3455 Quad Core 1.50GHz 2.30GHz (Burst)
BIOS AMI UEFI BIOS
Memory DDR3L 1866MHz memory support up to 8GB in SO-DIMM slot x1
VGA Integrated Graphics Chip/ D-Sub 15-pin (max. 1920 x 1080 pixels)
HDMI HDMI V1.4 x2 (max. 3840 x 2160 pixels)
Ethernet Realtek 8111H Giga LAN x2 (RJ-45 connector, Built-in PXE diskless boot)
USB USB 3.0 x4; USB 2.0 x2 (internal pin type)
HD Audio Realtek ALC662VD Mic in/ Line out
SATA Gen1.0 x1, 7-pin internal (not support 2.5 inch SATA HDD)
mSATA Full-size MiniPCIe x1 (co-lay mSATA for storage)
mPCIe Half-size Mini PCIe x1
RS-232 RS-232/485/422 D-sub 9-pin connector x1
RS-485 RS-232/485/422 D-sub 9-pin connector x1
RS-422 RS-232/485/422 D-sub 9-pin connector x1
SIM card slot SIM card slot x1 (Function via Full-size MiniPCIe)
Auto Power On Supported
Power requirement 12VDC standard input from power jack or internal 2-pin power connector for ATX/AT mode
Dimensions 130 x 109.5 x 47mm
Unit Net Weight 660g
Operation Temperature 0~60℃ (with Airflow)/ -10℃ Bootable
Certifications CE, FCC, VCCI
OS Support Windows 10, Windows 10 IoT and Linux OS
