  4. EBOX-ALN3350
    w/COM & 8-bit GPIO

EBOX-ALN3350
w/COM & 8-bit GPIO

EBOX-ALN3350-NRCG

Equipped with an Intel® Apollo Lake N3350 Dual-core 1.10GHz processor. Memory up to 8GB DDR3L, Display outputs x2, USB 3.0 x6, Mini PCIe slot, Micro SIM card holder, Multi-COM, 8-bit GPIO port, VESA mount, and DIN Rail support.

Download
Processor Intel® Apollo Lake N3350 Dual-core 1.10GHz, 2.40GHz (Burst)
Memory DDR3L 1866MHz SO-DIMM, memory up to 8GB
BIOS AMI UEFI BIOS
Display HDMI V1.4 x2; Maximum resolution support up to 3840 x 2160 pixels
Disk support SATA Gen.1 x1, 7-pin internal (Not support 2.5 inch SATA HDD)
Full-size MiniPCIe x1 (Supports mSATA storage)
Serial ports DB9 COM port x2 (RS232/485/422 x1 + 8-bit GPIO x1)
Ethernet Realtek 8111H GbE x2 (Built-in PXE diskless boot)
mPCIe Half-size Mini PCIe x1
SIM card slot Micro SIM card slot x1 (Function via Full-size MiniPCIe)
Audio HD Audio Realtek ALC662VD Mic in + Line out
USB USB 3.0 x4; USB 2.0 x2 (pin type)
Auto Power On Support
Power requirement DC +12V~+16V
Dimensions 115 x 115 x 48.5mm/DIN Rail Support (Optional)
Net Weight 660g
Operation Temperature 0~60℃/-20~+60℃ (Optional)
Certifications FCC, CE, VCCI
OS Support Windows 10, Windows 10 IoT and Linux

Dimensions unit: mm

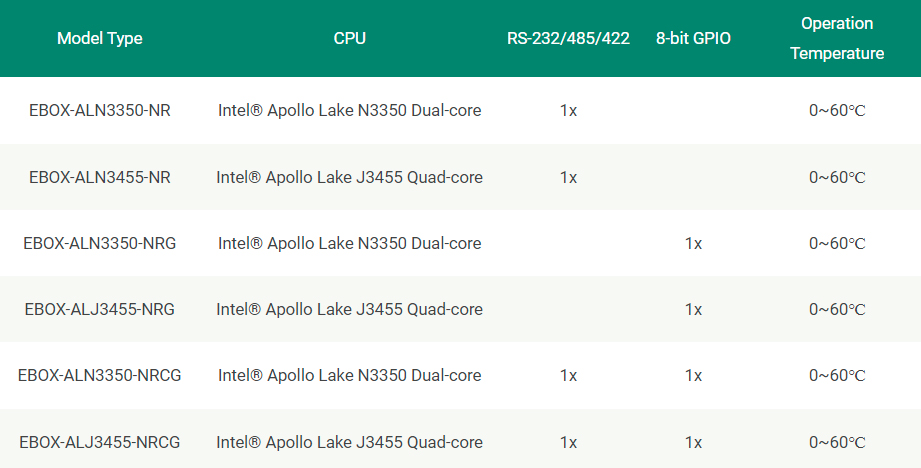

Model Type CPU RS232/485/422 8-bit GPIO Operation
Temperature
EBOX-ALN3350-NR Intel® Apollo Lake N3350 Dual-core 1x   0~60℃
EBOX-ALN3455-NR Intel® Apollo Lake J3455 Quad-core 1x   0~60℃
EBOX-ALN3350-NRG Intel® Apollo Lake N3350 Dual-core   1x 0~60℃
EBOX-ALJ3455-NRG Intel® Apollo Lake J3455 Quad-core   1x 0~60℃
EBOX-ALN3350-NRCG Intel® Apollo Lake N3350 Dual-core 1x 1x 0~60℃
EBOX-ALJ3455-NRCG Intel® Apollo Lake J3455 Quad-core 1x 1x 0~60℃
Model Type CPU RS232/485/422 8-bit GPIO Operation
Temperature
EBOX-ALN3350-NR-W Intel® Apollo Lake N3350 Dual-core 1x   -20~+60℃
EBOX-ALN3455-NR-W Intel® Apollo Lake J3455 Quad-core 1x   -20~+60℃
EBOX-ALN3350-NRG-W Intel® Apollo Lake N3350 Dual-core   1x -20~+60℃
EBOX-ALJ3455-NRG-W Intel® Apollo Lake J3455 Quad-core   1x -20~+60℃
EBOX-ALN3350-NRCG-W Intel® Apollo Lake N3350 Dual-core 1x 1x -20~+60℃
EBOX-ALJ3455-NRCG-W Intel® Apollo Lake J3455 Quad-core 1x 1x -20~+60℃
Model Type － CPU － D-sub 9-pin I/O － Temperature
EBOX － ALN3350:
Apollo Lake N3350		 － NR:
RS232/485/422 x1 		－ W:
-20~+60℃
  － ALJ3455:
Apollo Lake J3455		 － NRG:
8-bit GPIO x1		   None
0~60℃
      － NRCG:
RS232/485/422 x1 &
8-bit GPIO x1 (no VGA)



Supported storages:

IMSATA DOM/ISATA SLIM DOM
