EB-336x w/RS-485

EB-336x-851
EB-336x-852
EB-336x-853
EB-336x-854
EB-336x-851C1
EB-336x-851C2
EB-336x-851C3
EB-336x-852C2
EB-336x-C2852E
EB-336x-C2851G1E

A fanless, 32-bit, x86-architecture, Vortex86DX3 Dual-core 1.0GHz SoC All-in-One Module with 1GB/2GB DDR3 RAM.
Up to four RS-485 ports, RS-232, GPIO, Dual LAN ports, SATA, SD card, mPCIe, 100 x 100mm VESA mounts, DIN Rail
and -20~+70℃ operation temperature range support.

Download
Processor DM&P 32-bit x86 Vortex86DX3 Dual-core 1.0GHz SoC
Memory 1GB/2GB DDR3-1600MHz onboard
BIOS AMI BIOS
Display VGA Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1080 pixels)
Disk support SATA Gen1 x1, 7-pin internal (Not support 2.5 inch SATA HDD)
Standard Mini PCIe x1 (Optional)
SD Slot x1 (SD, SDHC)/Internal SD (Optional)
Serial ports DB9 COM ports x4 RS-232/485/422/8-bit GPIO/CANbus
MAX. RS-485 x4 (Optinal TTL RS-232)
Ethernet Realtek 8111F GbE x1/RDC R6040 10/100 Mbps LAN x1
(RJ-45 connector, Built-in PXE diskless boot)
Audio HD Audio Realtek ALC262VD Line-out or Mic-in & Line-out
USB USB V2.0 x4 (Front x2, Rear x1, Internal x1)
Auto Power On Support
Power requirement DC +8V~+24V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 510g
Operation Temperature 0~60℃/-20~+70℃
Certifications FCC, CE, VCCI
OS Support Windows 7, WES7, Windows XP, XPe, CE6.0, Compact 7 and Linux




Enlarge Fullscreen Mode to click the hyperlink for video

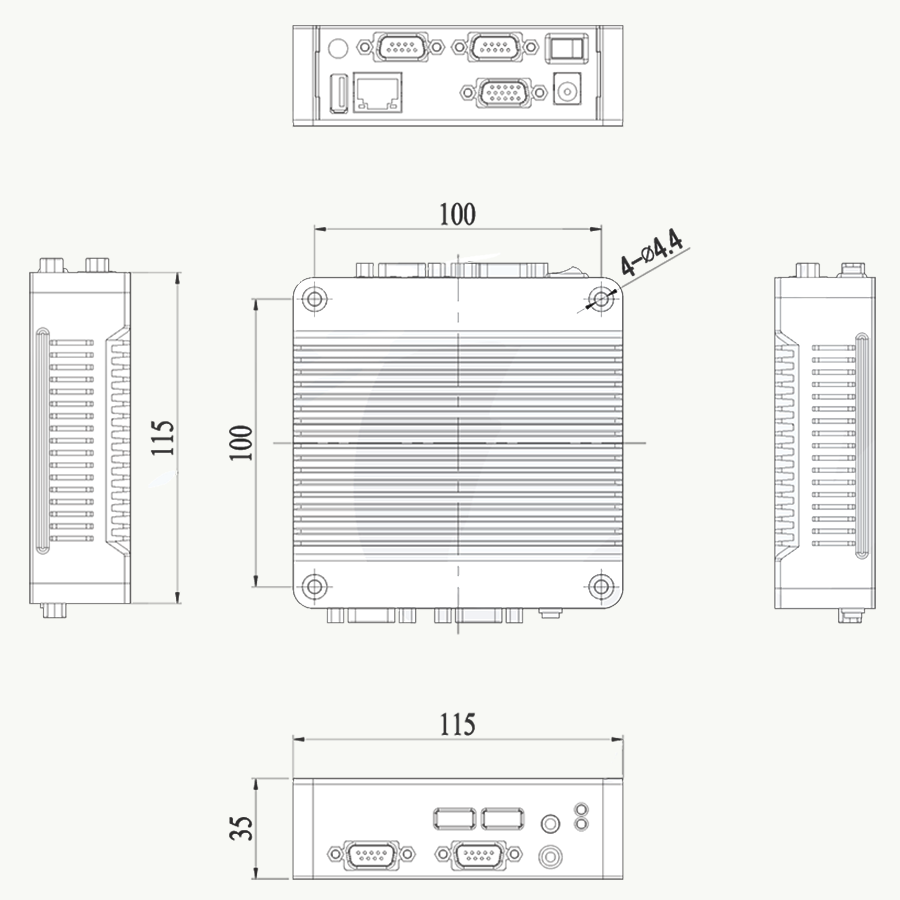

Dimensions unit: mm



Model Type RS-232 RS-485 8-bit GPIO Mic in Line out 10/100 Mbps LAN
EB-336x-851   1x     1x 1x
EB-336x-852   2x     1x 1x
EB-336x-853   3x   1x 1x 1x
EB-336x-854   4x   1x 1x 1x
EB-336x-851C1 1x 1x     1x 1x
EB-336x-851C2 2x 1x     1x 1x
EB-336x-851C3 3x 1x     1x 1x
EB-336x-C2852E 2x 2x   1x 1x 1x
EB-336x-C2851G1E 2x 1x 1x 1x 1x 1x

Model Type RS-232 RS-485 8-bit GPIO Mic in Line out 10/100 Mbps LAN 1 Gbps LAN
EB-336x-L2851   1x     1x 1x 1x
EB-336x-L2852   2x     1x 1x 1x
EB-336x-L2853   3x   1x 1x 1x 1x
EB-336x-L2854   4x   1x 1x 1x 1x
EB-336x-L2851C1 1x 1x     1x 1x 1x
EB-336x-L2851C2 2x 1x     1x 1x 1x
EB-336x-L2851C3 3x 1x     1x 1x 1x
EB-336x-L2C2852E 2x 2x   1x 1x 1x 1x
EB-336x-L2C2851G1E 2x 1x 1x 1x 1x 1x 1x
Model Type CPU DRAM LAN COM (MAX. 4 COM) mPCIe Display port
EB-33 6:
Vortex86DX3
0:
1GB
L2:
LAN x2
SS:
None
P:
mPCIe x1
DMI:
HDMI x1
    2:
2GB
  None
LAN x1
C1~C4:
RS-232 x1~x4
None
SATA x1
None
VGA x1
          851~854:
RS-485 x1~x4

          221~222:
RS-422 x1~x2

          G2:
8-bit GPIO x2

          B1:
CANbus x1




Model Type CPU DRAM LAN External USB COM (MAX. 4 COM) I/O interface
EB-33 6:
Vortex86DX3
0:
1GB
L3:
LAN x3
U4:
USB 2.0 x4
SS:
None
SIM:
SIM card slot x1
    2:
2GB
L2:
LAN x2
None
USB 2.0 x3
C1~C4:
RS-232 x1~x4
CF:
CF card slot x1
        None
LAN x1
  851~854:
RS-485 x1~x4
PRN:
Printer port x1
            221~222:
RS-422 x1~x2

            G2:
8-bit GPIO x2

            B1:
CANbus x1




Supported SATA storages:

SDM SST SATA SLIM DOM / ISATA DOM / ISATA SLIM DOM

The Vortex86 SoC Series are 32-bit x86-architecture microprocessors that are compatible with Windows, Linux and most popular 32-bit Real Time Operating Systems. The CPU clock ranges from a single core 300MHz to dual core 1GHz, and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB, etc., most of the legacy I/O interface into one single BGA package.

Website: http://www.vortex86.com/



Benchmark & Power Consumption index
