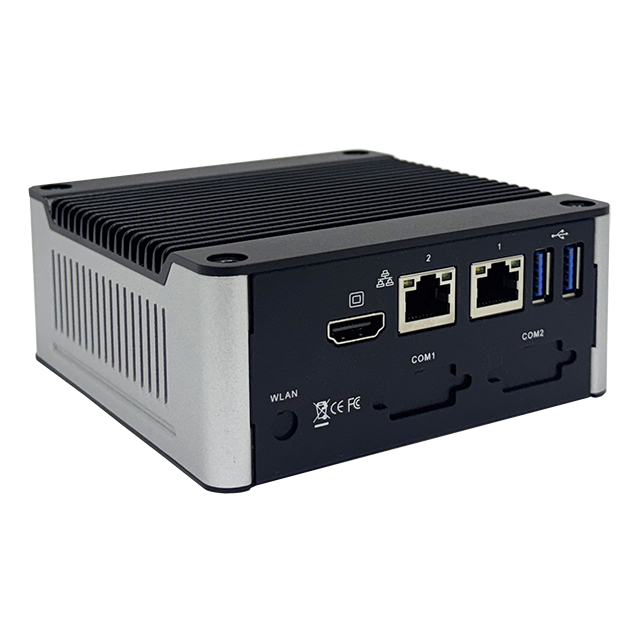

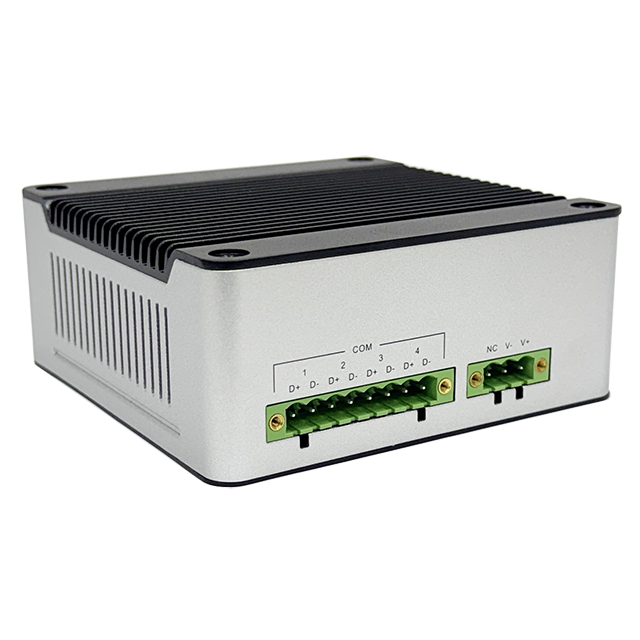

EBOX-58E-L2T4F-AP fanless PC powered by Intel® Braswell E8000 processor, supports up to 8GB DDR3L, Dual Giga LAN, and RS485 x4 (2 x opto-isolated) and UEFI and Legacy mode BIOS switchable. System delivers efficient performance, reliable communication, and enhanced protection for industrial applications.
Download
| Processor | Intel® Atom x5-E8000 Quad-core 1.04GHz, 2.00GHz (Burst) |
|---|---|
| Memory | SO-DIMM, DDR3L-1600MHz up to 8GB |
| BIOS | AMI UEFI BIOS (Legacy mode switchable) |

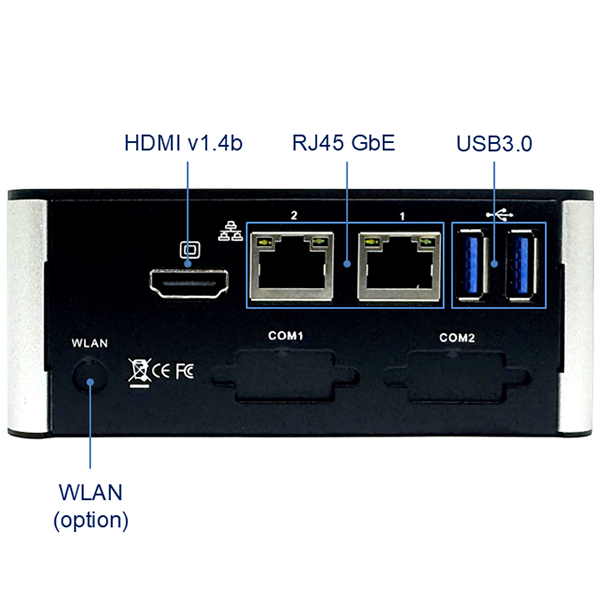

| Display | HDMI V1.4b (MAX. 3840 x 2160 pixels) |
| Disk support | SATA Gen.3 x1, SATA SLIM 7+15 pin internal |

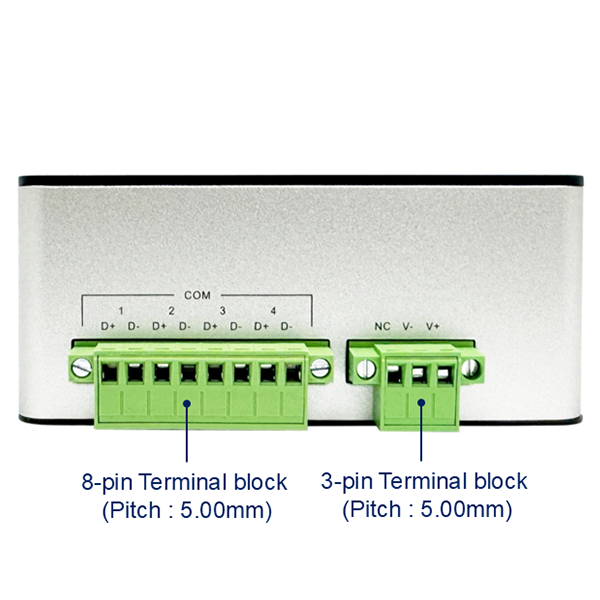

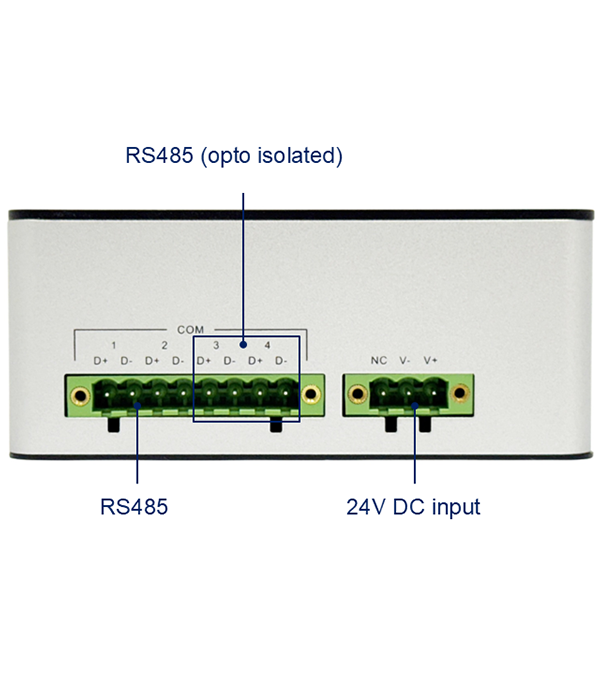

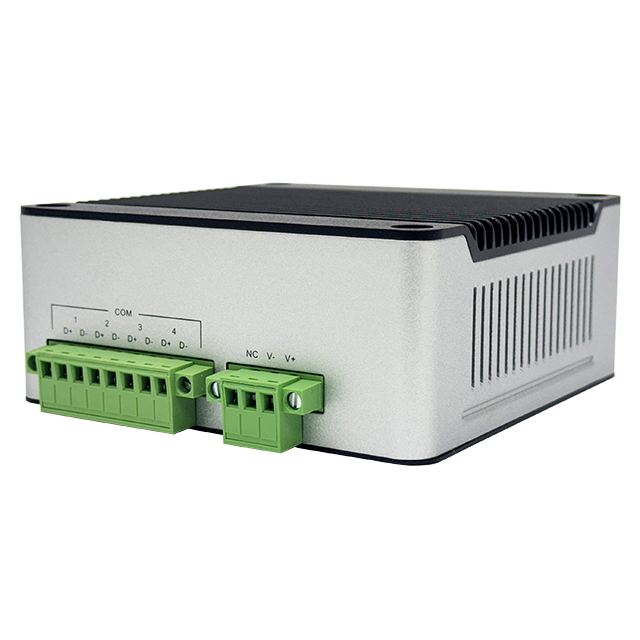

| Serial ports | RS485 x4 with 8pin terminal block (opto isolated x2) |
| Ethernet | Realtek 8111H GbE x2 (Built-in PXE diskless boot) |

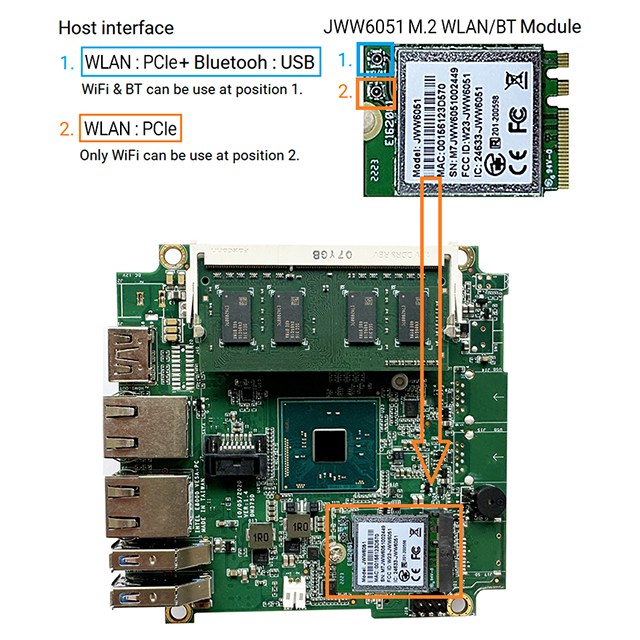

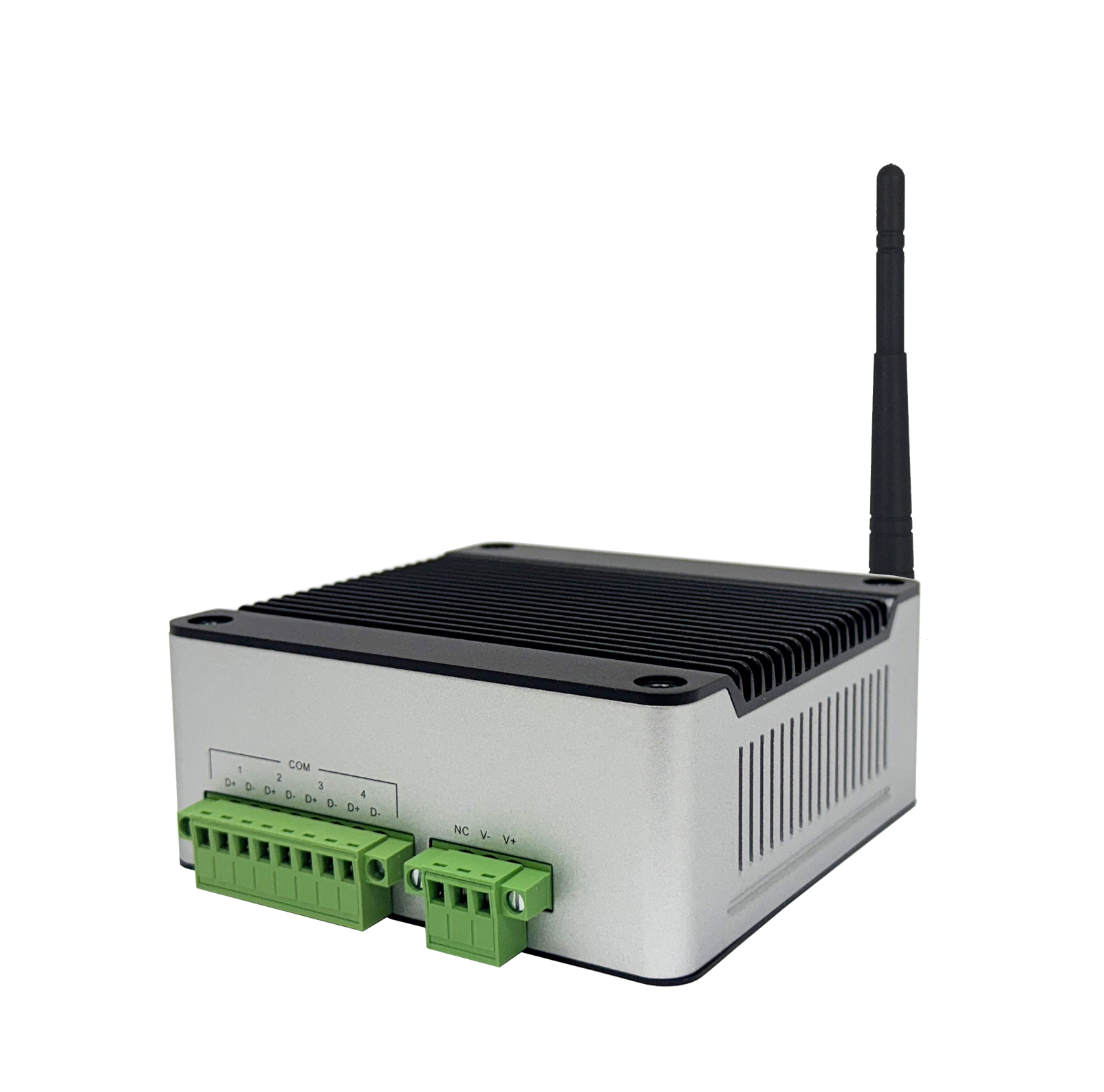

| Expansion | M.2 E-key x1 (2230), PCIe x1 interface (WLAN/BT) |
| USB | USB 3.0 x2 |
| Auto Power On | Support |
| Power requirement | DC In +15V~56V Lockable Terminal Block Connector |
| Dimensions | 115 x 115 x 48.5mm |
| Net Weight | 610g |
| Operation Temperature | 0~60℃ |
| Certifications | FCC, CE, VCCI |
| OS Support | Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian, OpenSUSE, Fedora, Android-x86, etc. |
Dimensions unit: mm
