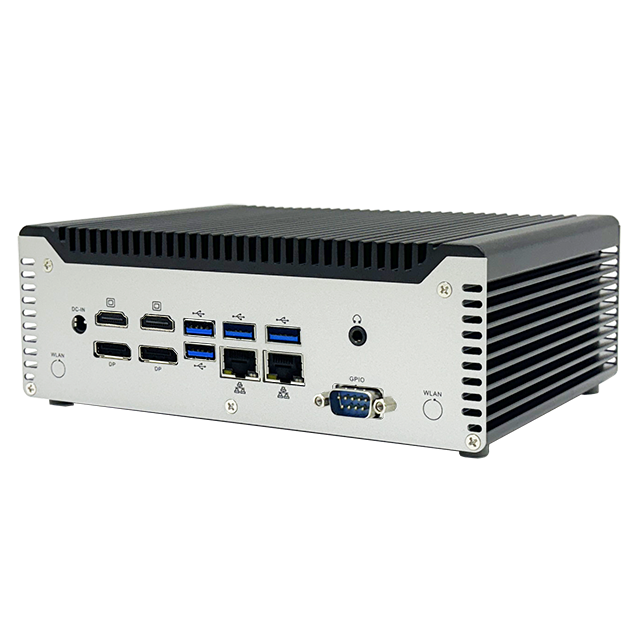

This fanless embedded computer is powered by an Intel® Tiger Lake i5 1135G7 Processor (2.40 GHz) and supports up to 64 GB of DDR4 3200 memory through dual channel SO DIMM slots. It features two HDMI 2.0 and two DP 1.4 ports for up to four 4K HDR displays or a single 8K SDR display.
Uniquely configured with six COM ports (COM1/COM2 RS 232/485/422, COM3–COM6 RS 232), it is ideal for environments requiring connections to multiple industrial machines, sensors, or serial based systems. Dual LAN, wide temperature operation ( 20 °C to +60 °C), and +12 V to +24 V DC input ensure reliable performance in demanding industrial applications.
Download
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) |
|---|---|
| Memory | DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB |
| BIOS | AMI BIOS |

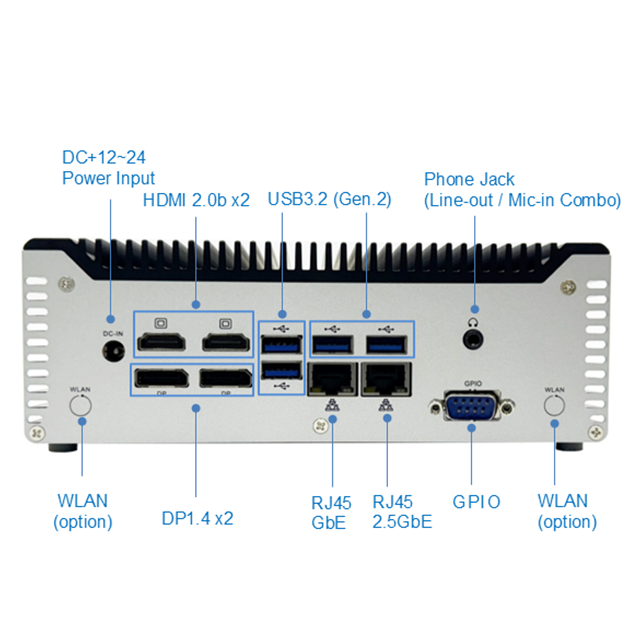

| Display | HDMI 2.0b x2 (Max. 4096x2160@60Hz) DP 1.4 x2 (max. 4096x2304@60Hz) Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP)) |
| Disk support | SATAIII x1 (2.5”SATA SSD, SATA DOM, SATA SLIM DOM) |

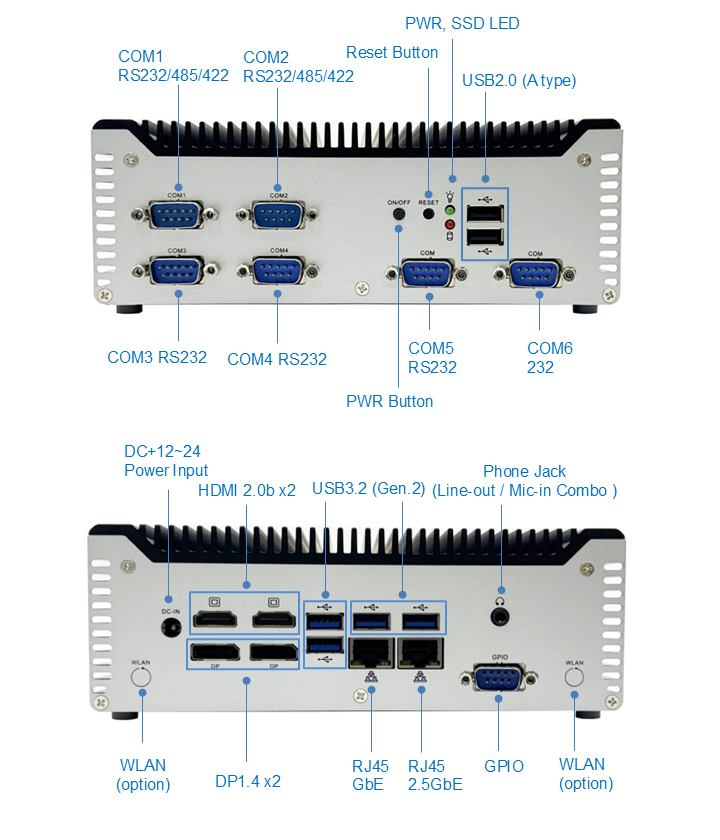

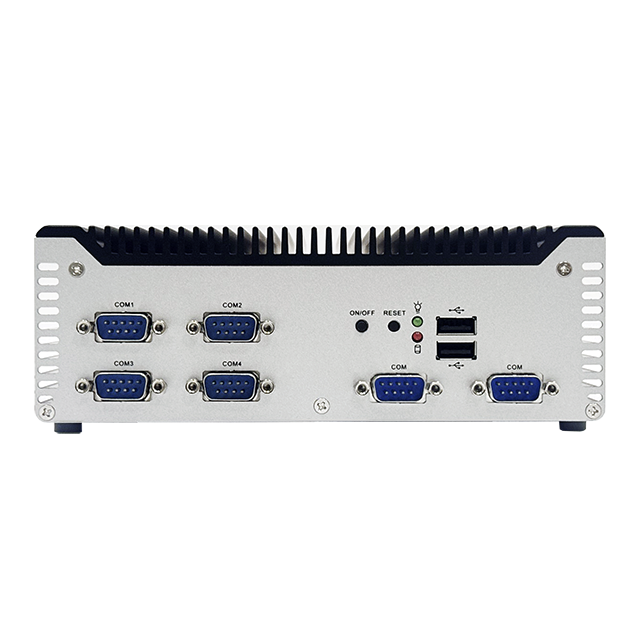

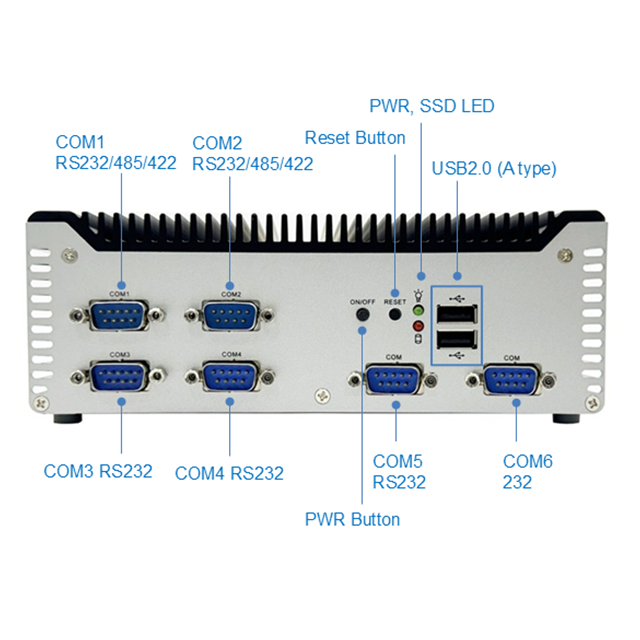

| Serial ports | Front: COM x6 (RS232/485/422 x2, RS232 x4) Rear: GPIO x1 |
| Ethernet | Intel® i219-LM 1.0GbE, i226 2.5GbE (Built-in PXE diskless boot) |

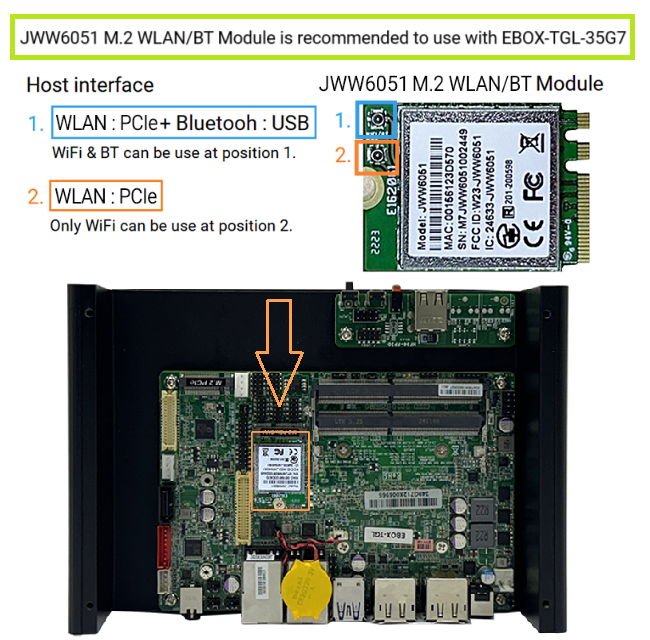

| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT |
| Audio | HD Audio Realtek ALC888S-VD2 |
| USB | Front: USB 2.0 x2 Rear: USB 3.2 (Gen2) x4 |
| Auto Power On | Support |
| Power requirement | DC +12~24V Power adapter only (2.5ø) |

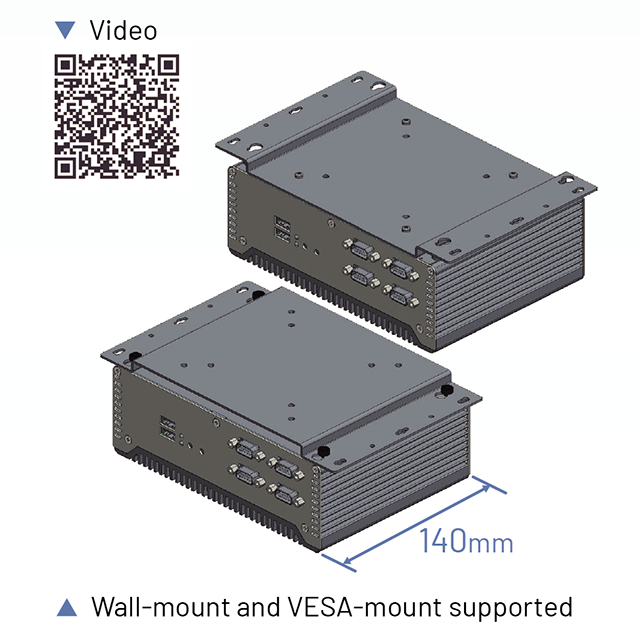

| Dimensions | 193.2 x 140 x 67mm |
| Net Weight | 2.2kgs |
| Operation Temperature | -20~+60°C |
| Certifications | CE, UKCA, FCC, VCCI |
| OS Support | Windows 11 & IoT, Windows 10 & IoT, Linux |
• Intel® Tiger Lake i5-1135G7 Processor
• DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
• HDMI 2.0 x2 (Max. 4096x2160@60Hz)
• DP 1.4 x2 (Max. 4096x2304@60Hz)
• Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP))
• M.2 M-key x1 (2242/2280), PCIe Gen.4 x4 interface support NVMe SSD
• M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
• COM1/COM2 RS232/485/422
• COM3/COM4/COM5/COM6 RS232
• DC Jack power input +12V~24V power adapter
• Operating Temperature -20~+60°C
Dimensions unit: mm
• Power consumption Max. Load Wattage: 69.7W
