EBOX-EHL-6412-L4 Fanless Box PC

EBOX-EHL-6412-L4

EBOX-EHL-6412-L4 Fanless Box PC equipped with Elkhart Lake J6412 quad-core 2.0GHz CPU, ensures reliable and efficient processing. It supports DDR4 3200MHz SO-DIMM memory up to 32GB and facilitates triple display setups with two HDMI 2.0 ports, one DP 1.4 port, each capable of 4K resolution. The unit features an M.2 M-key slot for PCIe Gen.3 x2/SATA interface support NVMe SSD storages and an additional M.2 E-key slot that further enhances connectivity options.

Intel® i225-V 2.5GbE RJ45 x4 ports (Built-in PXE diskless boot) provide high-speed networking, while a comprehensive set of USB 3.1 Gen2 ports offers extensive connectivity for peripherals. Additionally, COM and GPIO ports for expanded interfacing capabilities.

Download
Processor Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz)
Memory 8GB/16GB/32GB SO-DIMM DDR4
BIOS AMI BIOS
Display HDMI 2.0 x2 (Max. 4096x2160@60Hz)
DP 1.4 x1 (max. 4096x2160@60Hz)
Support Triple Displays
Disk support SATAIII x1 (SATA DOM)
Expansion M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
Serial ports COM x1 (RS232/485/422)/GPIO x1
Ethernet Intel® i225-V 2.5GbE x4 (Built-in PXE diskless boot)
Audio Dual channel HD Audio Realtek ALC888S
USB USB Type-C x2/USB3.1 (Gen2) Type-A x1/USB2.0 Type-A x1
Auto Power On Support
Power requirement DC +12V Power adapter only (2 .5ø)

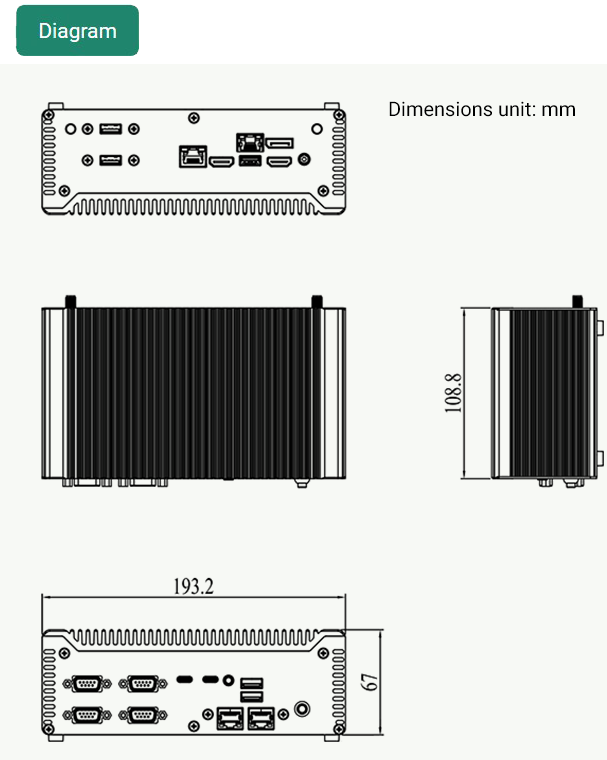

Dimensions 193.2 x 108.8 x 67mm
Net Weight 1.7kgs
Operation Temperature -20~+60°C
Certifications CE, UKCA, FCC, VCCI
OS Support Windows 11 & IoT, Windows 10 & IoT, Linux

• Intel® Elkhart Lake J6412 (Quad core 2.0GHz)
• DDR4 3200MHz SO-DIMM, memory up to 32GB
• HDMI 2.0 x2 (Max. 4096x2160@60Hz)
• DP 1.4 x1 (Max. 4096x2160@60Hz)
• Support Triple Displays
• M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
• SATAIII x1 (2.5”SATA SSD, SATA DOM)
• Intel® i225-V 2.5GbE RJ45 x4
• COM x1 (RS232/485/422)/GPIO x1
• DC +12V Power adapter only (2 .5ø)
• Operating Temperature -20~+60°C
• Wall-mount and VESA mount applicable



  Product number   Description
  EBOX-EHL-6412   Intel Elkhart Lake J6412 Fanless Box PC w/ LAN x2
  EBOX-EHL-6412-L4   Intel Elkhart Lake J6412 Fanless Box PC w/ LAN x4



  Optional product number   Description
  POWER-40W-EHL   AC-DC power adapter/DC12V@3.34A(AC 100~240V Input)
  POWERCABLE(A)(G)(EN)(AU)   Power cord US/EU/UK/AU&NZ types

  CASE-NUC-VESA

   VESA Rack
  JWW6051   EmWicon JWW6051 M.2 WLAN/BT module





             • Power consumption Max. Load Wattage: 27.3W
