EB-336x w/Legacy I/O

EB-336x-C2CF
EB-336x-852CF
EB-336x-L2C2CF
EB-336x-L2852CF
EB-336x-C2PRN
EB-336x-C3PRN

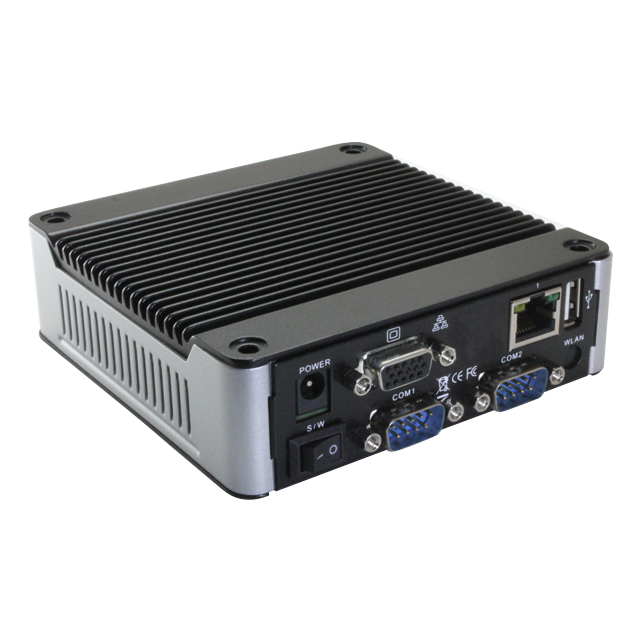

A fanless, 32-bit, x86-architecture, Vortex86DX3 Dual-core 1.0GHz SoC All-in-One Module with 1GB/2GB DDR3 RAM.
Dual RS232/485 ports, D-sub 25-pin printer port, SATA, CF card, SD card, mPCIe, 100 x 100mm VESA mounts, DIN Rail and -20~+70℃ operation temperature range support.

Download
Processor DM&P 32-bit x86 Vortex86DX3 Dual-core 1.0GHz SoC
Memory 1GB/2GB DDR3-1600MHz onboard
BIOS AMI BIOS
Display VGA Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1080 pixels)
Disk support SATA Gen1 x1, 7-pin internal (Not support 2.5 inch SATA HDD)
SD Slot x1 (SD, SDHC)/Internal SD (Optional) or CF Slot x1 IDE Primary Channel
Serial ports DB9 COM ports x3 RS232/485
MAX. RS232 x3 (Optinal TTL RS232)
Parallel port D-Sub 25-pin connector x1 (Optional)
Ethernet Realtek 8111F GbE x1/RDC R6040 10/100 Mbps LAN x1
(Built-in PXE diskless boot)
Audio HD Audio Realtek ALC262VD Line-out
USB USB V2.0 x4 (Front x2, Rear x1, Internal x1)
Auto Power On Support
Power requirement DC +8V~+24V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 510g
Operation Temperature 0~60℃/-20~+70℃
Certifications FCC, CE, VCCI
OS Support Windows 7, WES7, Windows XP, XPe, CE6.0, Compact 7 and Linux




Enlarge Fullscreen Mode to click the hyperlink for video

Dimensions unit: mm



Model Type CF card slot Printer port RS232 RS485 1 Gbps LAN 10/100 Mbps LAN
EB-336x-C2CF 1x   2x     1x
EB-336x-852CF 1x     2x   1x
EB-336x-L2C2CF 1x   2x   1x 1x
EB-336x-L2852CF 1x     2x 1x 1x
EB-336x-C2PRN   1x 2x     1x
EB-336x-C3PRN   1x 3x     1x
Model Type CPU DRAM － LAN COM (MAX. 4 COM) mPCIe Display port
EB-33 6:
Vortex86DX3		 0:
1GB		 － L2:
LAN x2		 SS:
None 		P:
mPCIe x1		 DMI:
HDMI x1
    2:
2GB		   None
LAN x1		 C1~C4:
RS232 x1~x4 		None
SATA x1		 None
VGA x1
          851~854:
RS485 x1~x4
          221~222:
RS422 x1~x2
          G2:
8-bit GPIO x2
          B1:
CANbus x1



Model Type CPU DRAM － LAN External USB COM (MAX. 4 COM) I/O interface
EB-33 6:
Vortex86DX3		 0:
1GB		 － L3:
LAN x3		 U4:
USB 2.0 x4		 SS:
None 		SIM:
SIM card slot x1
    2:
2GB		 － L2:
LAN x2		 None
USB 2.0 x3		 C1~C4:
RS232 x1~x4 		CF:
CF card slot x1
        None
LAN x1		   851~854:
RS485 x1~x4 		PRN:
Printer port x1
            221~222:
RS422 x1~x2
            G2:
8-bit GPIO x2
            B1:
CANbus x1



Supported SATA storages:

SDM SST SATA SLIM DOM/ISATA DOM/ISATA SLIM DOM

The Vortex86 SoC Series are 32-bit x86-architecture microprocessors that are compatible with Windows, Linux and most popular 32-bit Real Time Operating Systems. The CPU clock ranges from a single core 300MHz to dual core 1GHz, and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB, etc., most of the legacy I/O interface into one single BGA package.

Website: http://www.vortex86.com/
