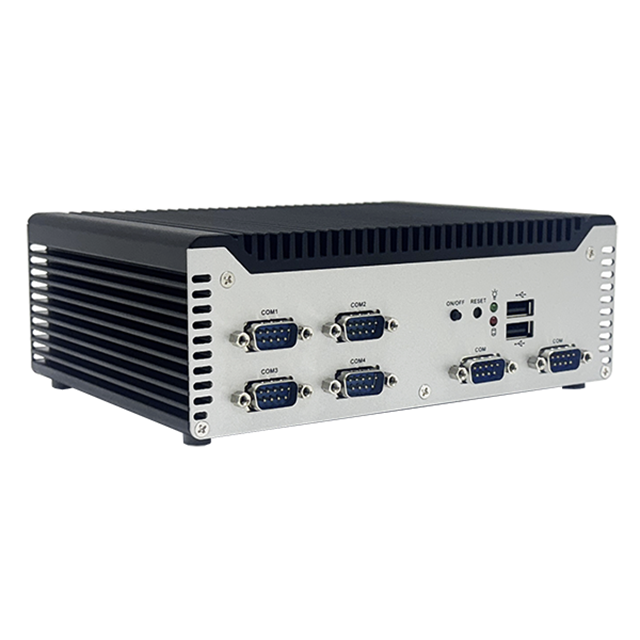

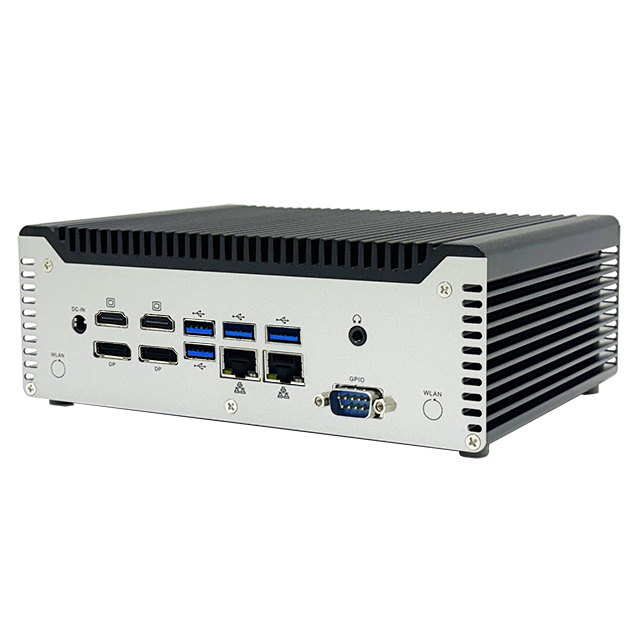

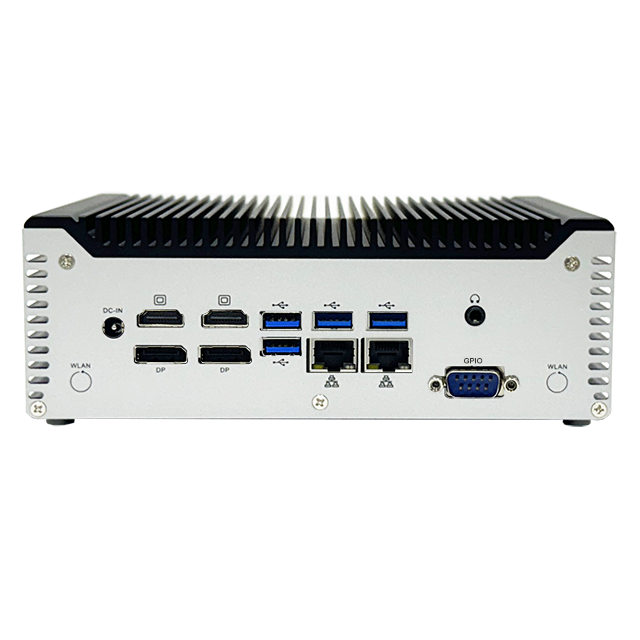

Powered by the Intel® Tiger Lake i5 1135G7 quad core processor (2.40GHz) with support for up to 64GB DDR4 3200 via dual channel SO DIMMs, this fanless system offers two HDMI 2.0 and two DP 1.4 outputs to drive up to four 4K HDR displays or one 8K SDR display.
Designed for maximum serial expandability, it features eight COM ports (COM1/COM2 RS 232/485/422, COM3/COM4 RS232 plus COM5~COM8 RS485/422), making it ideal for large scale automation, logistics control, and multi sensor integration. Dual Ethernet ports, M.2 NVMe storage support, and 20°C to +60°C operation make it ready for harsh industrial environments.
Download
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) |
|---|---|
| Memory | DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB |
| BIOS | AMI BIOS |

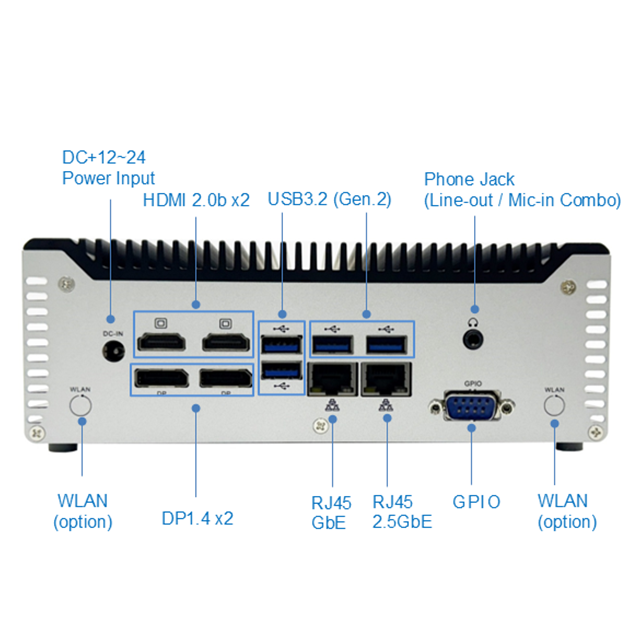

| Display | HDMI 2.0b x2 (Max. 4096x2160@60Hz) DP 1.4 x2 (max. 4096x2304@60Hz) Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP)) |
| Disk support | SATAIII x1 (2.5”SATA SSD, SATA DOM, SATA SLIM DOM) |

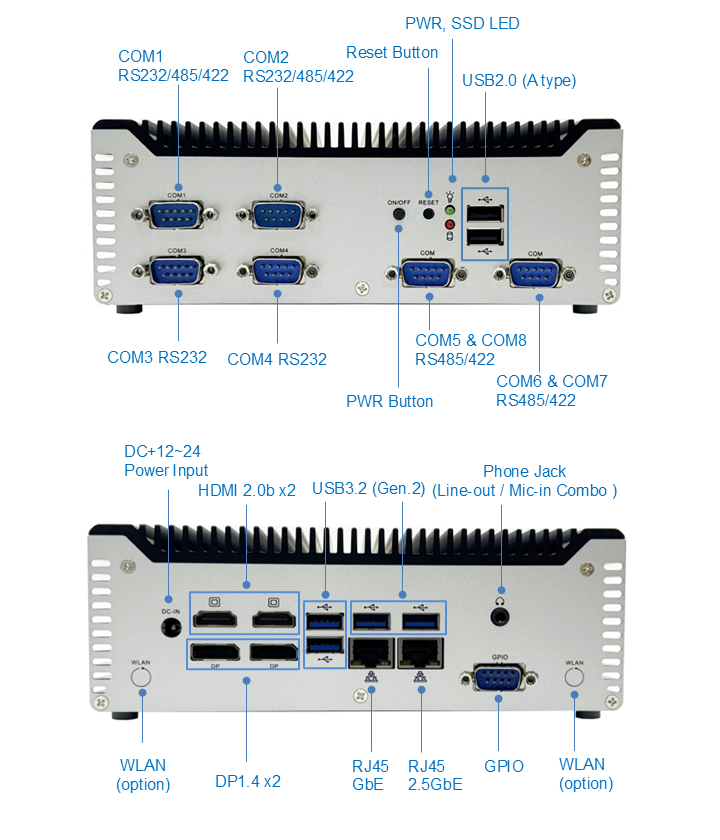

| Serial ports | Front: COM x8 (RS232/485/422 x2, RS232 x2, RS485/422 x4) Rear: GPIO x1 |
| Ethernet | Intel® i219-LM 1.0GbE, i226 2.5GbE (Built-in PXE diskless boot) |
| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT |
| Audio | HD Audio Realtek ALC888S-VD2 |
| USB | Front: USB 2.0 x2 Rear: USB 3.2 (Gen2) x4 |
| Auto Power On | Support |
| Power requirement | DC +12~24V Power adapter only (2.5ø) |
| Dimensions | 193.2 x 140 x 67mm |
| Net Weight | 2.2kgs |
| Operation Temperature | -20~+60°C |
| Certifications | CE, UKCA, FCC, VCCI |
| OS Support | Windows 11 & IoT, Windows 10 & IoT, Linux |
• Intel® Tiger Lake i5-1135G7 Processor
• DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
• HDMI 2.0 x2 (Max. 4096x2160@60Hz)
• DP 1.4 x2 (Max. 4096x2304@60Hz)
• Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP))
• M.2 M-key x1 (2242/2280), PCIe Gen.4 x4 interface support NVMe SSD

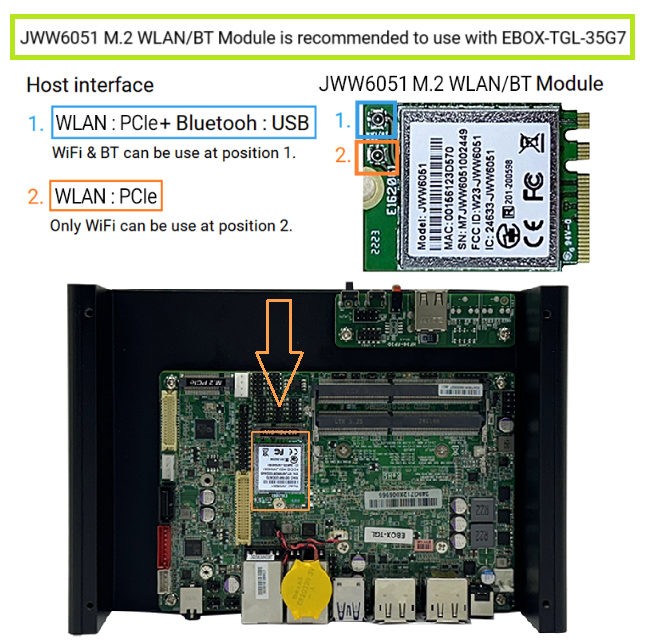

• M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT

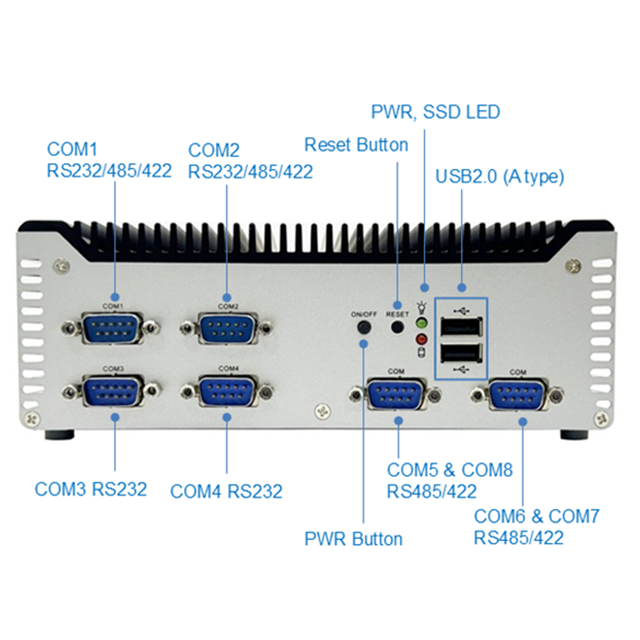

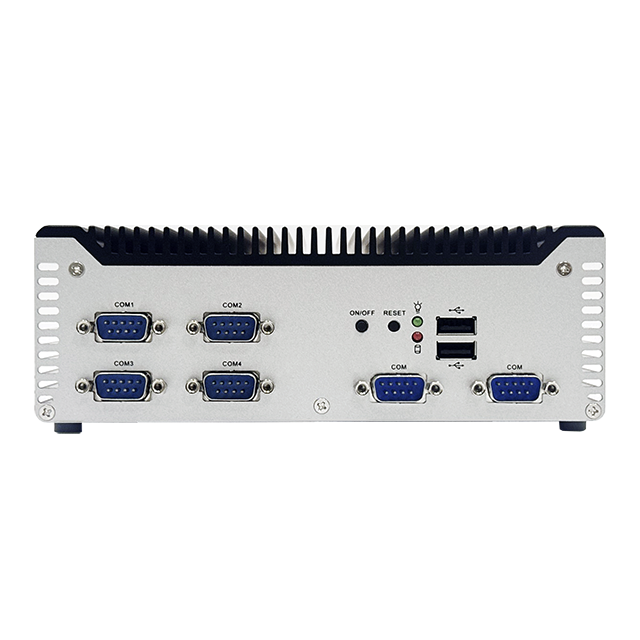

• COM1/COM2 RS232/485/422
• COM3/COM4 RS232
• COM5~COM8 RS485/422
• DC Jack power input +12V~24V power adapter
• Operating Temperature -20~+60°C

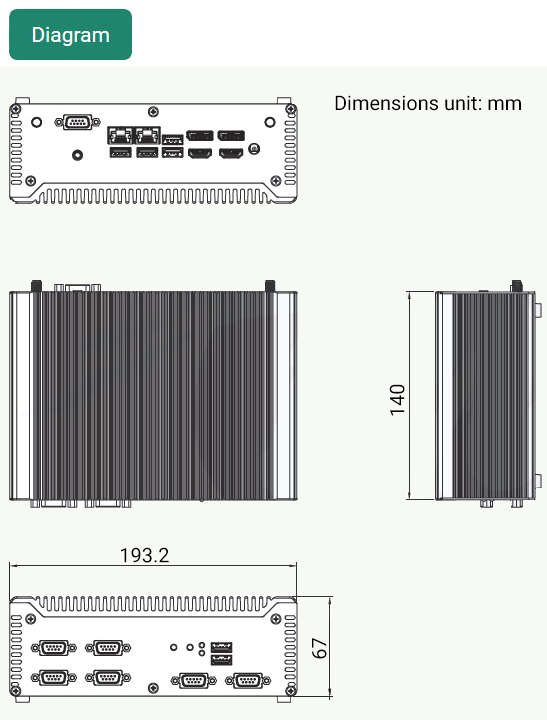

Dimensions unit: mm
• Power consumption Max. Load Wattage: 69.7W
