EBOX-RTL-1335U-C6 Fanless Box PC

EBOX-RTL-1335U-C6

Built on the powerful 13th Gen Intel® Core™ i5-1335U (up to 4.6GHz) with up to 64GB DDR5 4800MHz memory, this fanless embedded system adds enhanced connectivity with six COM ports supporting RS232/422/485, ideal for complex industrial automation requiring multi-serial device integration. It retains comprehensive display options and dual 2.5GbE LAN ports, wide voltage input, GPIO, and extensive industrial-grade reliability rated for -20°C to +50°C.

Download
Processor Intel® 13th Gen Core™ i5-1335U up to 4.6GHz
Memory 2 x DDR5 4800MHz SO-DIMM, Dual Channel support, up to 64GB
BIOS AMI UEFI BIOS
Display HDMI 2.0b x2, DP 1.4 x2, Type-C DP 1.4 x1 (Max. 4096x2160@60Hz, HDR10 compatible)
Supports up to 4 simultaneous 4K HDR displays.
Disk support SATAIII x1 (2.5” SATA SSD, SATA DOM, SATA SLIM DOM)

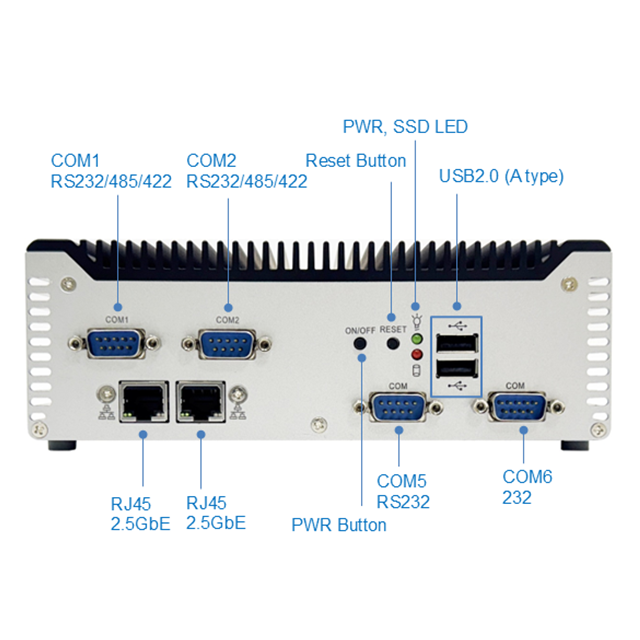

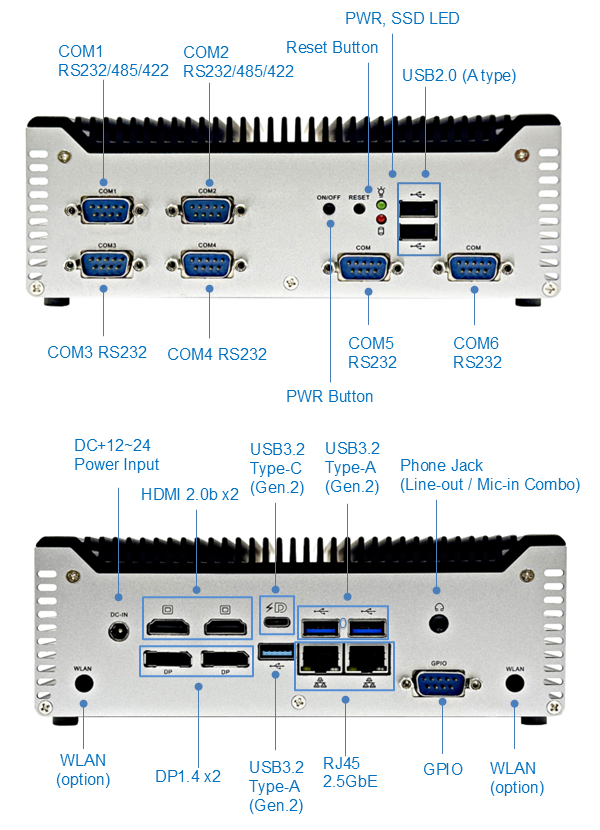

Serial ports Front: COM x6 (RS232/485/422 x2, RS232 x4)
Rear: GPIO x1
Ethernet Intel® i226V 2.5GbE, Intel® i226LM 2.5GbE
(Built-in PXE diskless boot)
Expansion M.2 E-key (2230) supports USB2.0/PCIe CNVi interface x1
M.2 B-key 3042/3052 (USB 3.2) for 4G/5G/LTE x1 or B+M-key 2242 (SATA III/PCIe 3.0) for SSD x1
Audio Realtek HD Combo Audio
USB Front: USB 2.0 x2

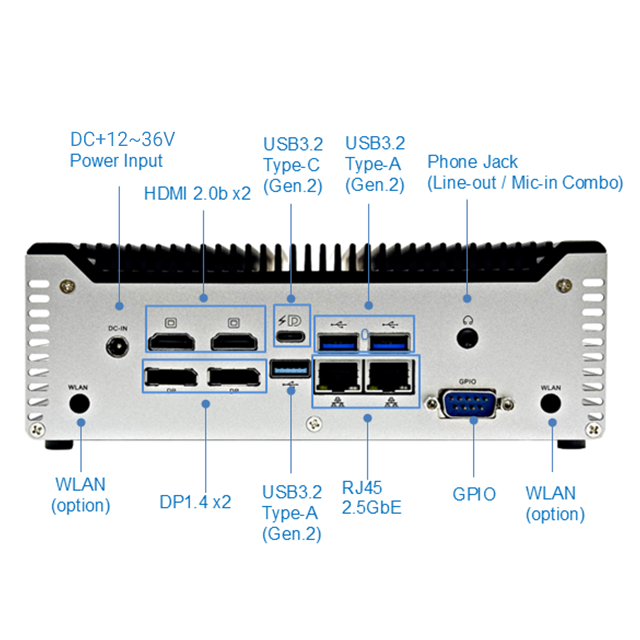

Rear: USB 3.2 (Gen2) x3 / USB3.2 Gen 2 Type-C x1 supports DP ALT mode
SIM card slot Nano SIM
Auto Power On Yes
Power requirement DC in +12~36V Power adapter only
Dimensions 193.2 x 140 x 67mm
Net Weight 2.2kgs
Operation Temperature -20~+50°C
Certifications CE, UKCA, FCC, VCCI
OS Support Windows 11 & IoT, Windows 10 & IoT, Linux

• Intel® 13th Gen Core™ i5-1335U up to 4.6GHz
• DDR5 4800MHz Dual SODIMM Up to 64GB
• 2.5GbE up to 4, GPIO x1, SATA III (2.5” SATA SSD, SATA DOM, SATA SLIM DOM)
• HDMI x2, DP x2, Type-C DP x1
• Support up to 4 simultaneous 4K HDR Displays
• M.2 Slots: M/E/B+M/B-Key, Nano SIM

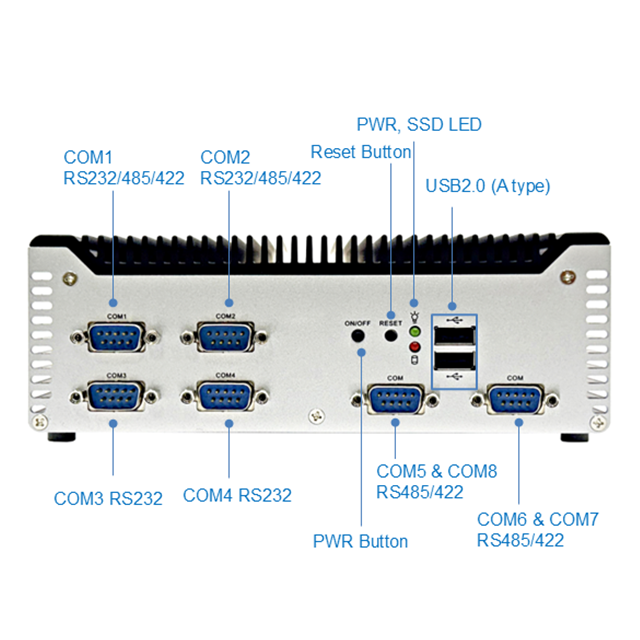

• COM1/COM2 RS232/422/485, COM3/COM4 RS232, COM5~8 RS485/422
• DC input +12~36V power adapter, Lockable DC Jack (optional)
• External Nano SIM (optional)
• Operating Temperature -20°C to +50°C

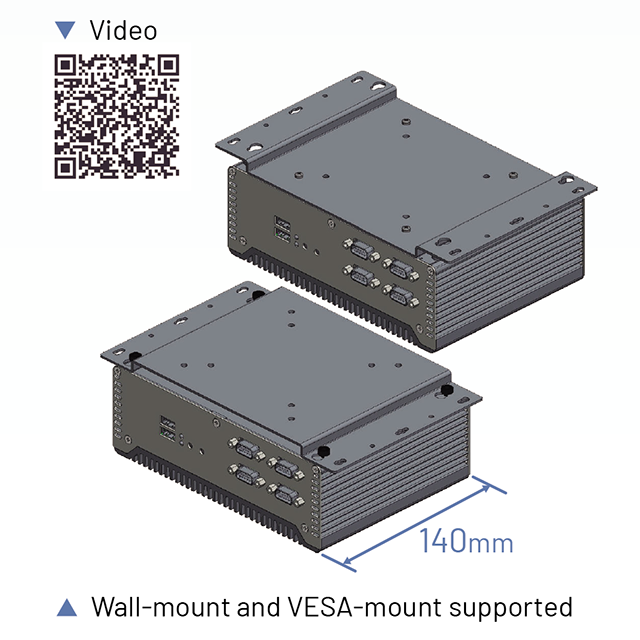

                                                                                                                                                                         Dimensions unit: mm

 Product number   Description
  EBOX-RTL-1335U   Intel® Core™ i5-1335U Fanless Box PC w/ COM x4, LAN x2
  EBOX-RTL-1335U-C6   Intel® Core™ i5-1335U Fanless Box PC w/ COM x6, LAN x2
  EBOX-RTL-1335U-MUX8   Intel® Core™ i5-1335U Fanless Box PC w/ COM x8, LAN x2
  EBOX-RTL-1335U-L4   Intel® Core™ i5-1335U Fanless Box PC w/ COM x4, LAN x4



  Optional product number   Description
  POWER-90W-TGL   AC-DC power adapter 90W/DC12V@7.5A (AC input 100~240V)
  POWERCABLE(A)(G)(EN)(AU)   Power cable types US/EU/UK/AU&NZ
 CASE-35-VESA   VESA Rack
  JWW6051   EmWicon JWW6051 M.2 WLAN/BT module



             • Power consumption Max. Load Wattage: 96.49W
