Optimized for advanced network applications, this variant features 13th Gen Intel® Core™ i5-1335U computing power with up to 64GB DDR5 memory and a unique four LAN ports configuration including dual 2.5GbE for superior network redundancy and segmented connectivity. It supports multiple 4K HDR displays across HDMI, DP, and USB Type-C DP, along with rich I/O options (RS232/422/485, SATA III, GPIO) and industrial-grade power and temperature tolerance (-20°C to +50°C).
Download
| Processor | Intel® 13th Gen Core™ i5-1335U up to 4.6GHz |
|---|---|
| Memory | 2 x DDR5 4800MHz SO-DIMM, Dual Channel support, up to 64GB |
| BIOS | AMI UEFI BIOS |
| Display | HDMI 2.0b x2, DP 1.4 x2, Type-C DP 1.4 x1 (Max. 4096x2160@60Hz, HDR10 compatible) Supports up to 4 simultaneous 4K HDR displays. |
| Disk support | SATAIII x1 (2.5 SATA SSD, SATA DOM, SATA SLIM DOM) |

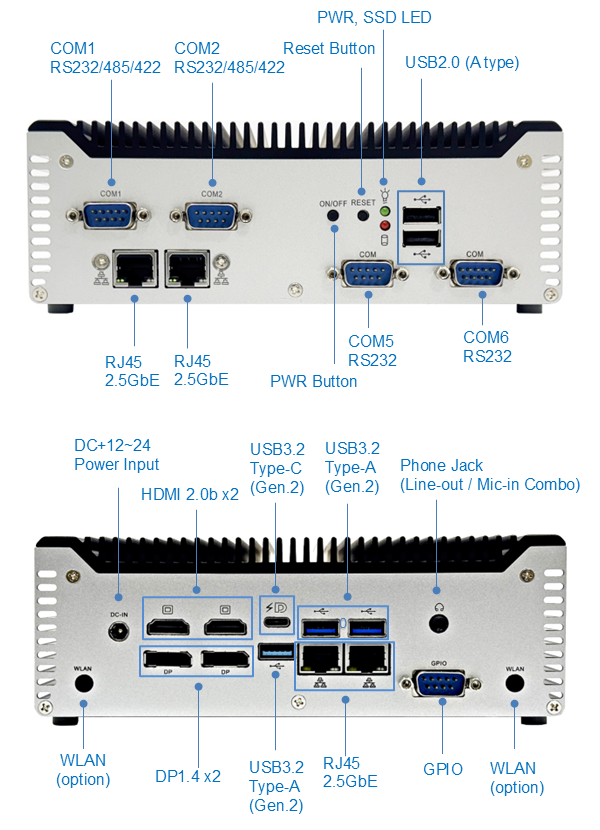

| Serial ports | Front: COM x4 (RS232/485/422 x2, RS232 x2) Rear: GPIO x1 |
| Ethernet | Intel® i226V 2.5GbE x1, Intel® i226LM 2.5GbE x3 (Built-in PXE diskless boot) |
| Expansion | M.2 E-key (2230) supports USB2.0/PCIe CNVi interface x1 M.2 B-key 3042/3052 (USB 3.2) for 4G/5G/LTE x1 or B+M-key 2242 (SATA III/PCIe 3.0) for SSD x1 |
| Audio | Realtek HD Combo Audio |

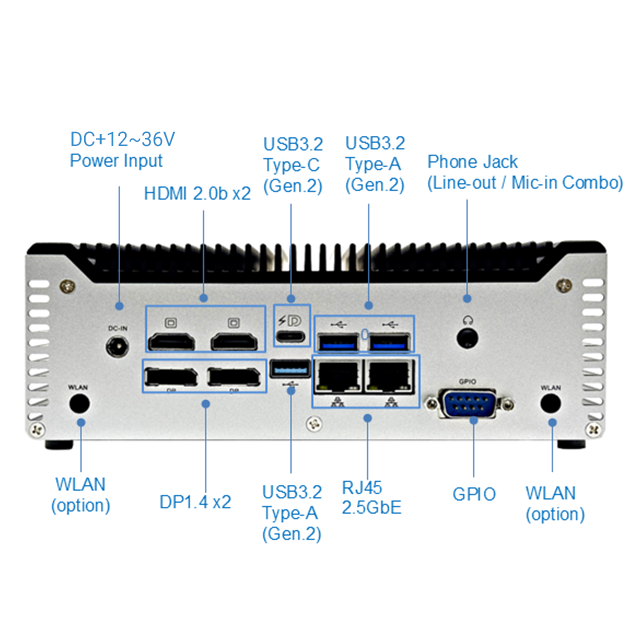

| USB | Front: USB 2.0 x2 Rear: USB 3.2 (Gen2) x3 / USB3.2 Gen 2 Type-C x1 supports DP ALT mode |
| SIM card slot | Nano SIM |
| Auto Power On | Yes |
| Power requirement | DC in +12~36V Power adapter only |
| Dimensions | 193.2 x 140 x 67mm |
| Net Weight | 2.2kgs |
| Operation Temperature | -20~+50°C |
| Certifications | CE, UKCA, FCC, VCCI |
| OS Support | Windows 11 & IoT, Windows 10 & IoT, Linux |
• Intel® 13th Gen Core™ i5-1335U up to 4.6GHz
• DDR5 4800MHz Dual SODIMM Up to 64GB
• 2.5GbE up to 4, GPIO x1, SATA III (2.5 SATA SSD, SATA DOM, SATA SLIM DOM)
• HDMI x2, DP x2, Type-C DP x1
• Support up to 4 simultaneous 4K HDR Displays
• M.2 Slots: M/E/B+M/B-Key, Nano SIM

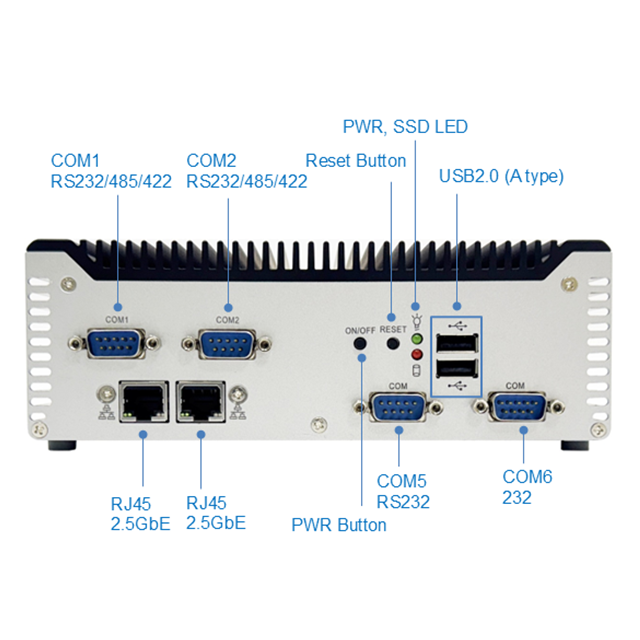

• COM1/COM2 RS232/422/485, COM3/COM4 RS232, COM5~8 RS485/422
• DC input +12~36V power adapter, Lockable DC Jack (optional)
• External Nano SIM (optional)
• Operating Temperature -20°C to +50°C

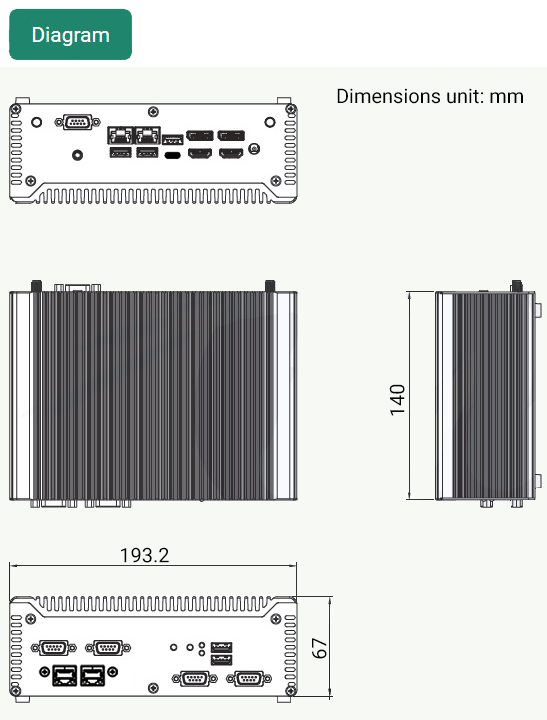

Dimensions unit: mm
• Power consumption Max. Load Wattage: 96.49W
