This fanless embedded computer integrates the Intel® Tiger Lake i5-1135G7 processor (2.40 GHz) and supports up to 64 GB DDR4-3200 memory in dual-channel SO-DIMMs. With two HDMI 2.0 and two DP 1.4 ports, it can drive up to four 4K HDR displays or one 8K SDR display. Engineered for enhanced networking, it features three RJ-45 LAN ports, including 10GbE x1, 2.5GbE x1, 1.0GbE x1, enabling high-speed data transmission, network segmentation, and versatile connectivity. Combined with its wide operating temperature range (-20 °C to +60 °C), +12 V to +24 V DC input, and rich I/O options, it is an excellent choice for industrial monitoring and smart factory network applications.
Download
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) |
|---|---|
| Memory | 2 x DDR4 3200MHz SO-DIMM, Dual Channel support, up to 64GB |
| BIOS | AMI UEFI BIOS |
| Display | HDMI 2.0b x2 (Max. 4096x2160@60Hz) DP 1.4 x2 (max. 4096x2304@60Hz) Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP)) |
| Disk support | SATAIII x1 (2.5 SATA SSD, SATA DOM, SATA SLIM DOM) |

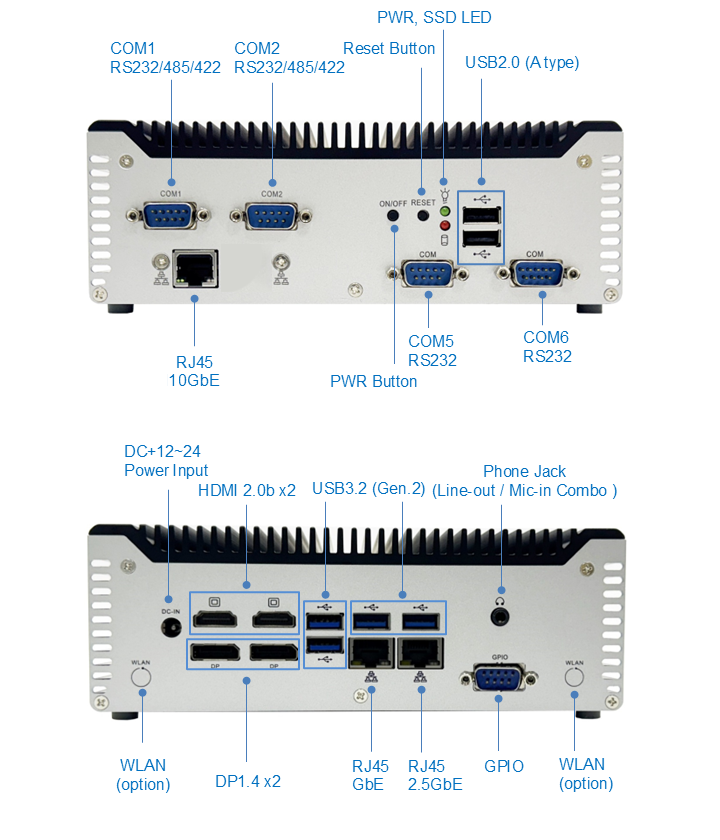

| Serial ports | Front: COM x4 (RS232/485/422 x2, RS232 x2) Rear: GPIO x1 |
| Ethernet | 10GbE x1, Intel® i226 2.5GbE x1, i219-LM 1.0GbE x1 (Built-in PXE diskless boot) |

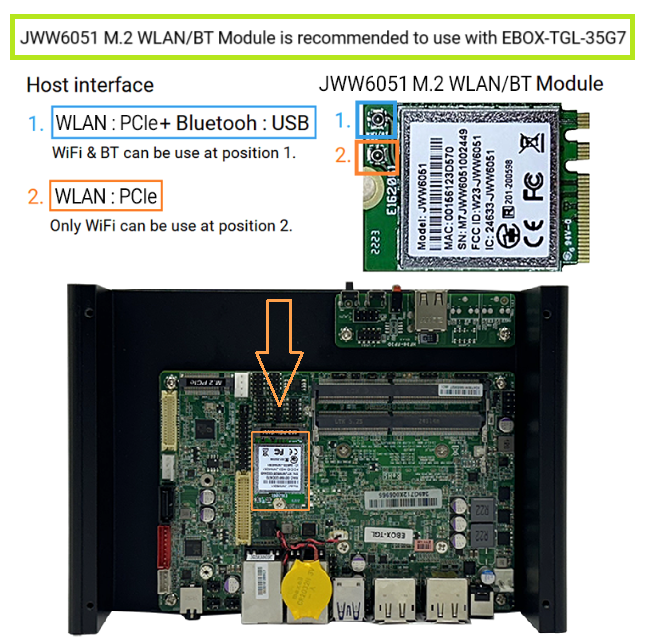

| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT |
| Audio | HD Audio Realtek ALC888S-VD2 |
| USB | Front: USB 2.0 x2 Rear: USB 3.2 (Gen2) x4 |
| Auto Power On | Support |
| Power requirement | DC +12~24V Power adapter only (2.5ø) |
| Dimensions | 193.2 x 140 x 67mm |
| Net Weight | 2.2kgs |
| Operation Temperature | -20~+60°C |
| Certifications | CE, UKCA, FCC, VCCI |
| OS Support | Windows 11 & IoT, Windows 10 & IoT, Linux |
• Intel® Tiger Lake i5-1135G7 Processor
• DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
• HDMI 2.0 x2 (Max. 4096x2160@60Hz)
• DP 1.4 x2 (Max. 4096x2304@60Hz)
• Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP))
• M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
• SATAIII x1 (2.5”SATA SSD, SATA DOM, SATA SLIM DOM)

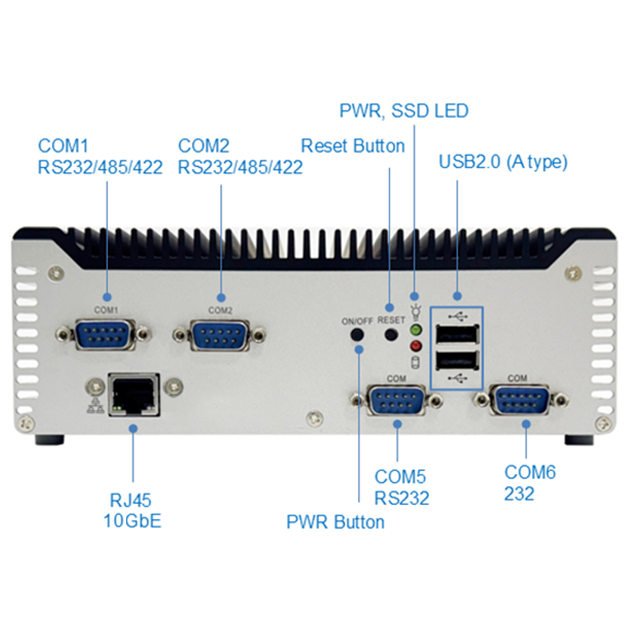

• COM1/COM2 RS232/485/422
• COM3/COM4 RS232
• 10GbE x1, Intel® i226 2.5GbE x1, i219-LM 1.0GbE x1
• DC Jack power input +12V~24V power adapter
• Operating Temperature -20~+60°C

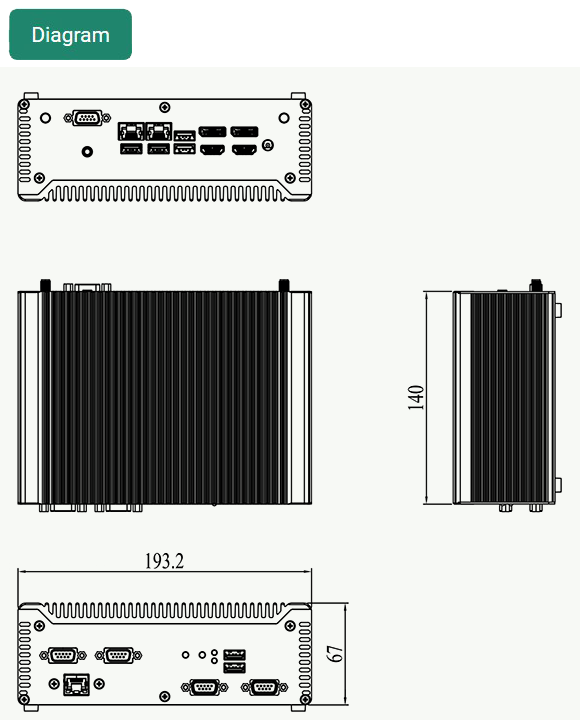

Dimensions unit: mm
• Power consumption Max. Load Wattage: 69.7W
