EB-58N w/RS-232, Dual LAN

EB-58N-L2C2F
EB-58N-L2C4F
EB-58N-L2F2F
EB-58N-L2NNF
EB-58N-L2C2F-AP
EB-58N-L2C4F-AP
EB-58N-L2F2F-AP
EB-58N-L2NNF-AP

EB-58N w/RS-232, Dual LAN equipped with an Intel® Celeron N3160 Quad Core 1.6GHz processor. Supports: UEFI mode/Legacy mode BIOS, up to 8GB DDR3L memory, Dual Giga LAN ports, RS-232 x4/RS-485 x2 ports, M.2 E key, SATA, and Micro SD card.

Download
Processor Intel® Celeron N3160 Quad Core 1.6GHz, 2.24GHz (Burst)
BIOS AMI UEFI BIOS (Legacy mode switchable)
Memory SO-DIMM, DDR3L-1600MHz up to 8GB
HDMI HDMI V1.4b (MAX. 3840 x 2160 pixels)
Ethernet Realtek 8111H GbE x2, RJ45 x2
USB USB 3.0 x4 (Front x2, Rear x2)
HD Audio Realtek ALC262VD Mic-in & Line-out
Micro SD card slot Micro SD Slot x1 (Micro SD, SDXC)

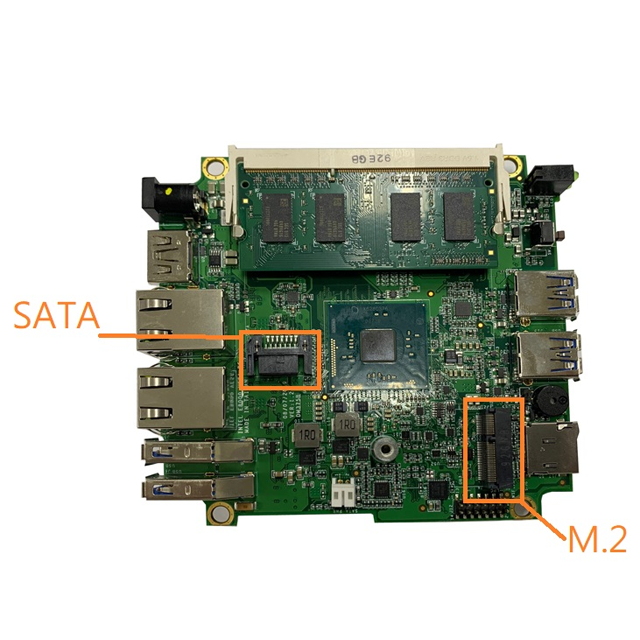

SATA SATA Gen3 x1, SATA SLIM 7+15 pin internal
RS-232 DB9 RS-232 x4, TTL (Optional)
RS-485 DB9 RS-485 x2, TTL (Optional)
Expansion M.2 2230 E Key x1 (WiFi/BT Module use)
Auto Power On Support
Power requirement DC +8V~+16V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 510g
Operation Temperature 0~60℃
Certifications CE, FCC, VCCI
OS Support Windows 10, Windows 10 IoT and Linux
Model Type CPU LAN RS-232 RS-485 Auto Power On
EB-58N-L2C2F Intel® Braswell N3160 2x 2x
EB-58N-L2C4F Intel® Braswell N3160 2x 4x
EB-58N-L2F2F Intel® Braswell N3160 2x 2x 2x
EB-58N-L2NNF Intel® Braswell N3160 2x
EB-58N-L2C2F-AP Intel® Braswell N3160 2x 2x   Support
EB-58N-L2C4F-AP Intel® Braswell N3160 2x 4x   Support
EB-58N-L2F2F-AP Intel® Braswell N3160 2x 2x 2x Support
EB-58N-L2NNF-AP Intel® Braswell N3160 2x     Support
Model Type CPU LAN COM TPM Auto Power On
EB-58 E: E8000 L2: LAN x2 C2: RS-232 x2 F: Excluded AP: Support
  N: N3160 L1: LAN x1 C4: RS-232 x4 T: Included
        F2: RS-232/RS-485 x2
        F4: RS-485 x2
        NN: None
