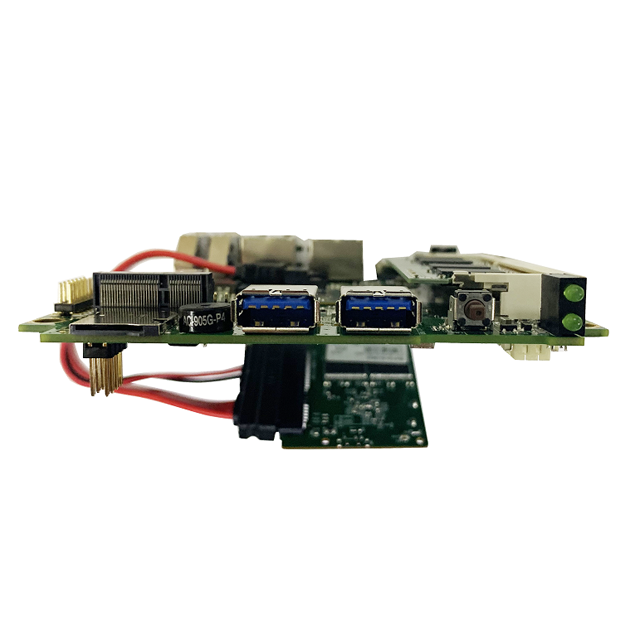

EB-58E w/RS-485, Dual LAN equipped with an Intel® Braswell E8000 Quad-core 1.04GHz processor,
UEFI/Legacy switchable BIOS, up to 8GB DDR3L memory. Dual Giga LAN, RS-485 x2 or RS-485 x2 plus RS-232 x2 ports,
M.2 E key, SATA, and Micro SD card support.
Processor | Intel® Atom x5-E8000 Quad-core 1.04GHz, 2.00GHz (Burst) |
---|---|
Memory | SO-DIMM, DDR3L-1600MHz up to 8GB |
BIOS | AMI UEFI BIOS (Legacy mode switchable) |
Display | HDMI V1.4b (MAX. 3840 x 2160 pixels) |

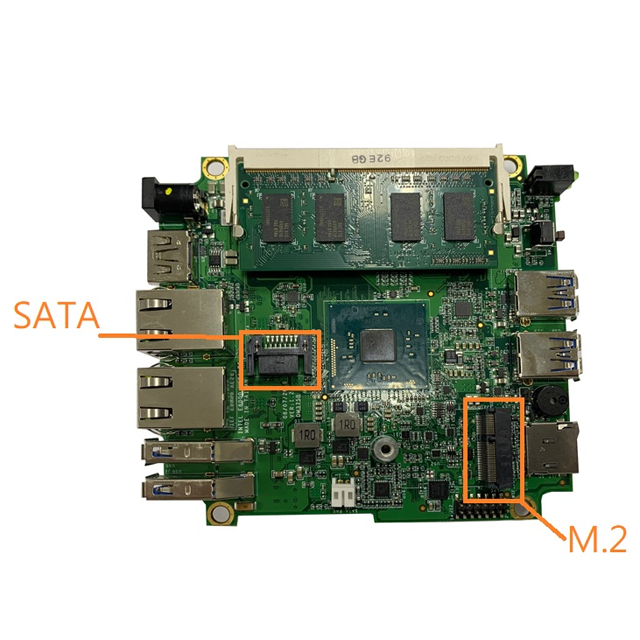

Disk support | SATA Gen.3 x1, SATA SLIM 7+15 pin internal, 2.5 inch SSD/HDD (Optional) Micro SD Slot x1 (Micro SD, SDXC) |
Serial ports | DB9 COM ports x4 (MAX. RS-485 x2) (Optional TTL RS-232) |
Ethernet | Realtek 8111H GbE x2, RJ45 x2 |
Expansion | M.2 2230 E Key x1 (WiFi/BT Module use) |
Audio | HD Audio Realtek ALC262VD Mic-in & Line-out |
USB | USB 3.0 x4 (Front x2, Rear x2) |
Auto Power On | Support |
Power requirement | DC +12V |

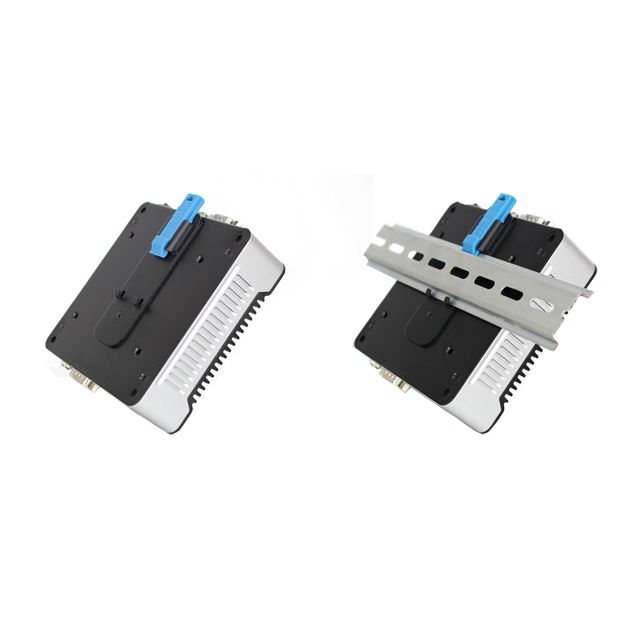

Dimensions | 115 x 115 x 35mm/DIN Rail Support (Optional) |
Net Weight | 510g |
Operation Temperature | 0~60℃ |
Certifications | FCC, CE, VCCI |
OS Support | Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian, OpenSUSE, Fedora, Android-x86, etc. |
Enlarge Fullscreen Mode to click the hyperlink for video
Dimensions unit: mm
