EB-58E w/RS-232

EB-58E-L1C2F
EB-58E-L1C4F
EB-58E-L1F2F
EB-58E-L1NNF
EB-58E-L1C2F-AP
EB-58E-L1C4F-AP
EB-58E-L1F2F-AP
EB-58E-L1NNF-AP

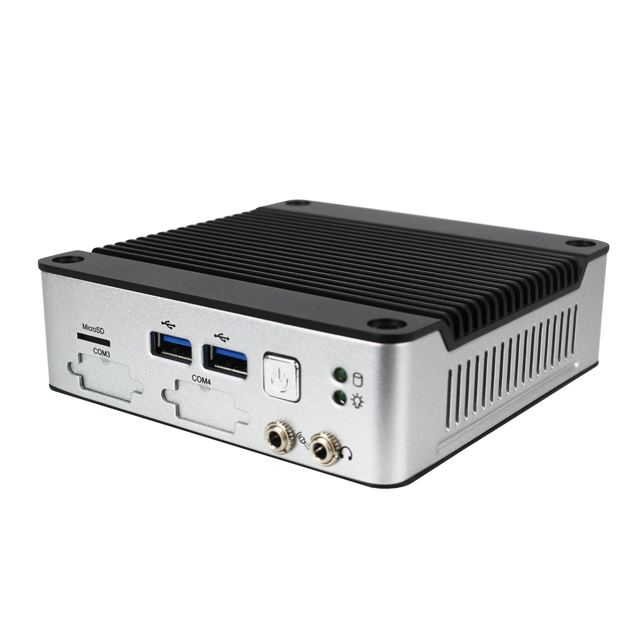

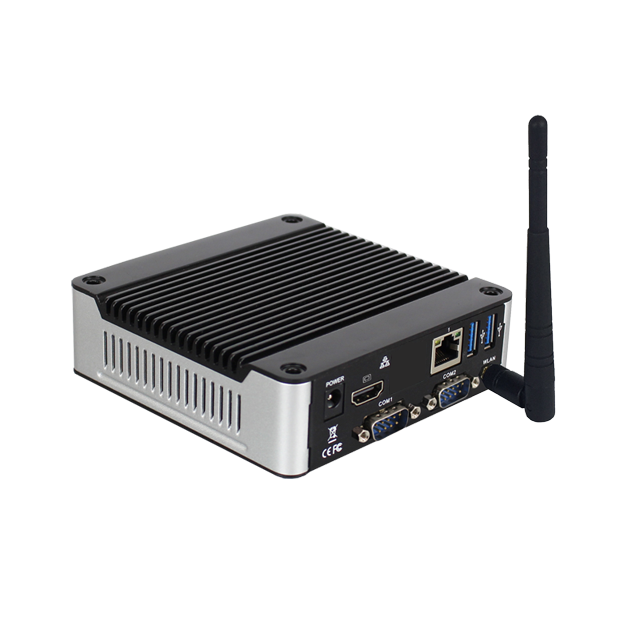

EB-58E w/RS-232 equipped with an Intel® Braswell E8000 Quad-core 1.04GHz processor, UEFI/Legacy switchable BIOS, up to 8GB DDR3L memory. Giga LAN x1, RS-232 x4/RS-485 x2 ports, M.2 E key, SATA, and Micro SD card support.

Download
Processor Intel® Atom x5-E8000 Quad-core 1.04GHz, 2.00GHz (Burst)
Memory SO-DIMM, DDR3L-1600MHz up to 8GB
BIOS AMI UEFI BIOS (Legacy mode switchable)
Display HDMI V1.4b (MAX. 3840 x 2160 pixels)

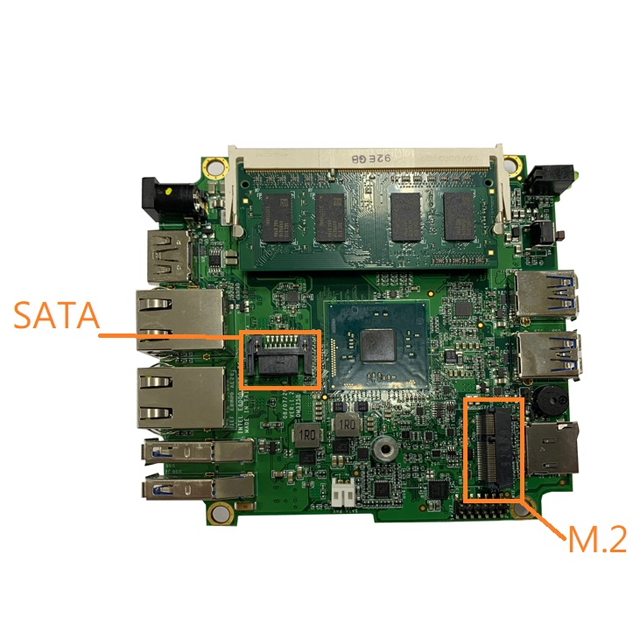

Disk support SATA Gen.3 x1, SATA SLIM 7+15 pin internal, 2.5 inch SSD/HDD (Optional)
Micro SD Slot x1 (Micro SD, SDXC)
Serial ports DB9 COM ports x4 (MAX. RS-232 x4)
(Optional TTL RS-232)
Ethernet Realtek 8111H GbE x1, RJ45 x1
Expansion M.2 2230 E Key x1 (WiFi/BT Module use)
Audio HD Audio Realtek ALC262VD Mic-in & Line-out

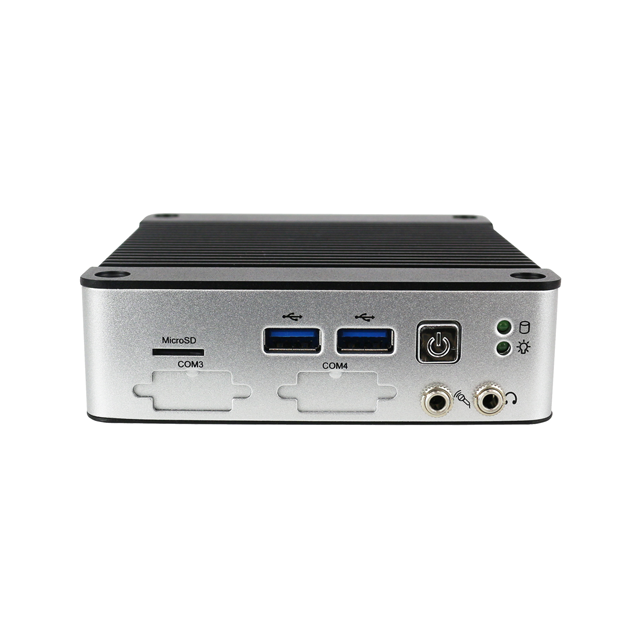

USB USB 3.0 x4 (Front x2, Rear x2)
Auto Power On Support
Power requirement DC +12V

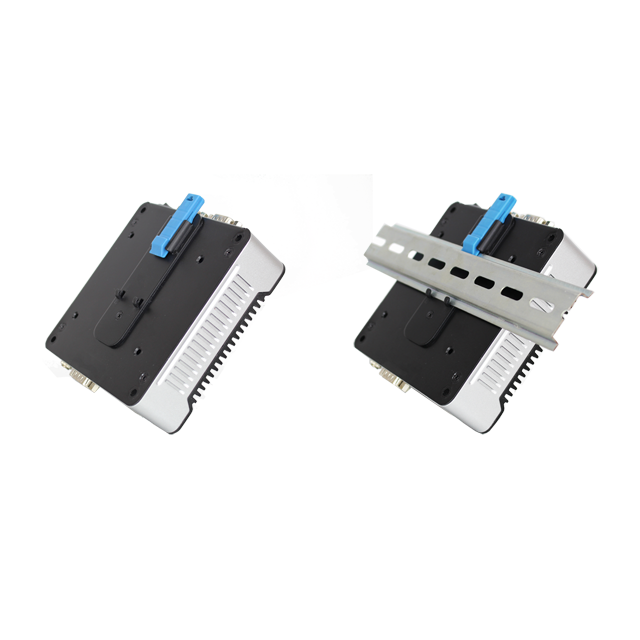

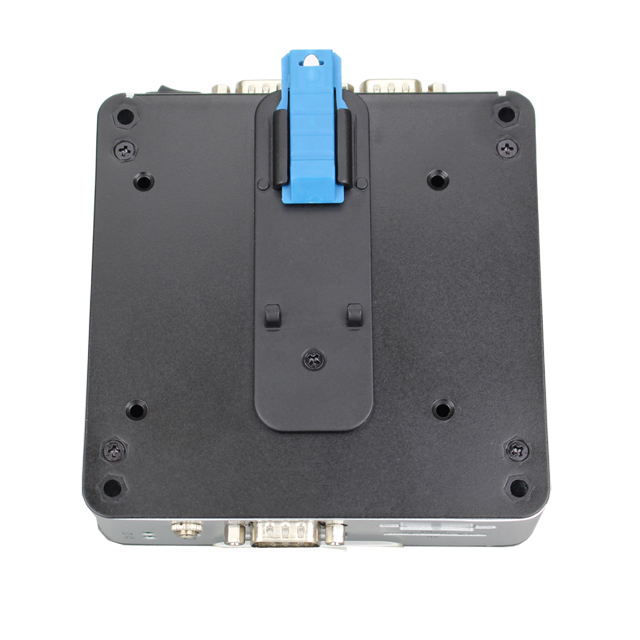

Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 510g
Operation Temperature 0~60℃
Certifications FCC, CE, VCCI
OS Support Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian, OpenSUSE, Fedora, Android-x86, etc.




Enlarge Fullscreen Mode to click the hyperlink for video

Dimensions unit: mm

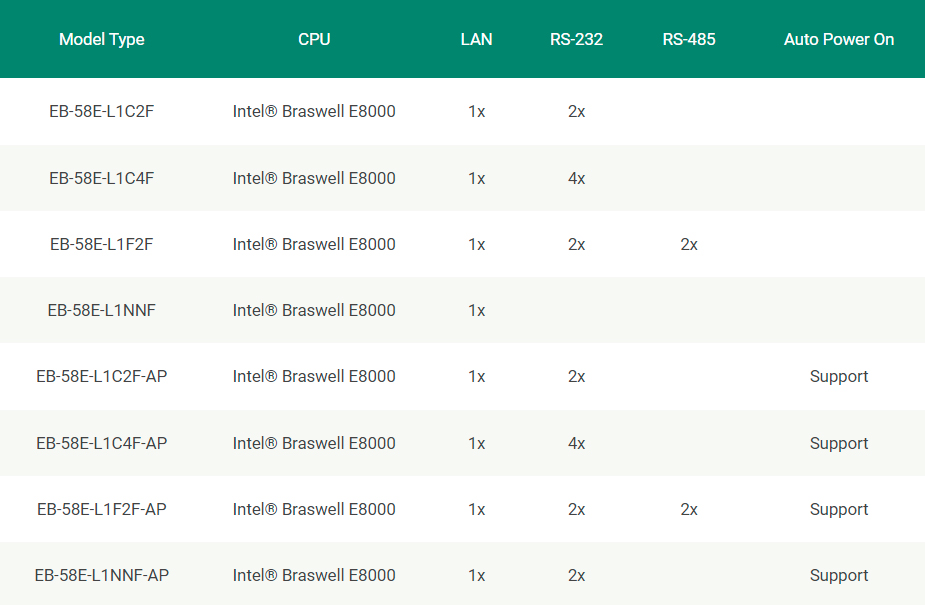

Model Type CPU LAN RS-232 RS-485 Auto Power On
EB-58E-L1C2F Intel® Braswell E8000 1x 2x
EB-58E-L1C4F Intel® Braswell E8000 1x 4x
EB-58E-L1F2F Intel® Braswell E8000 1x 2x 2x
EB-58E-L1NNF Intel® Braswell E8000 1x
EB-58E-L1C2F-AP Intel® Braswell E8000 1x 2x   Support
EB-58E-L1C4F-AP Intel® Braswell E8000 1x 4x   Support
EB-58E-L1F2F-AP Intel® Braswell E8000 1x 2x 2x Support
EB-58E-L1NNF-AP Intel® Braswell E8000 1x 2x   Support
Model Type CPU LAN COM TPM Auto Power On
EB-58 E: E8000 L2: LAN x2 C2: RS-232 x2 F: Excluded AP: Support
  N: N3160 L1: LAN x1 C4: RS-232 x4 T: Included
        F2: RS-232/RS-485 x2
        F4: RS-485 x2
        NN: None




Supported SATA storages:

SDM SST SATA SLIM DOM / ISATA SLIM DOM
