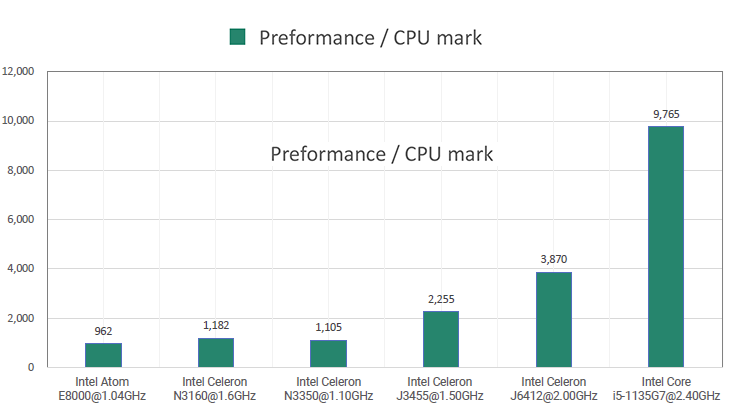

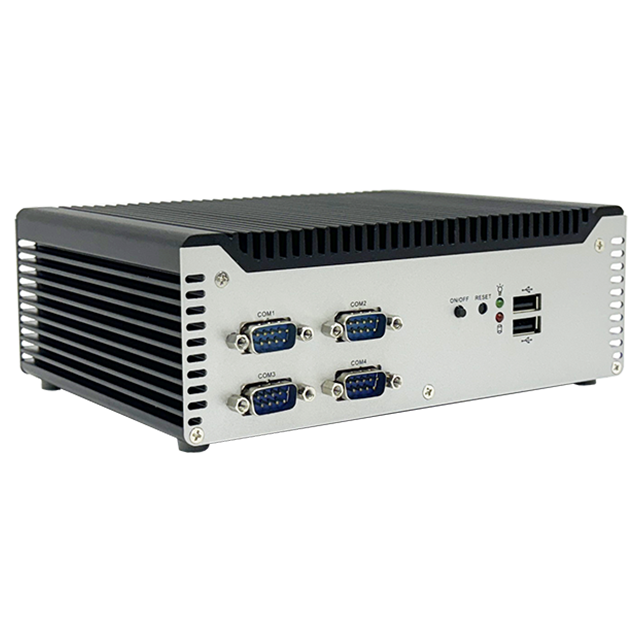

Powered by the Intel® Tiger Lake i5 1135G7 quad core processor (2.40 GHz), the EBOX TGL 35G7 delivers high computing performance in a compact, fanless design. It supports up to 64 GB DDR4 3200 memory via dual channel SO DIMM slots, and features two HDMI 2.0 ports plus two DisplayPort 1.4 interfaces, enabling up to four independent 4K HDR displays or a single 8K SDR display.
The system includes dual Ethernet ports for flexible network connectivity, wide temperature operation from 20 °C to +60 °C, and a +12 V to +24 V DC input via jack connector for stable and reliable power in demanding industrial environments.
Download
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) |
|---|---|
| Memory | DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB |
| BIOS | AMI BIOS |
| Display | HDMI 2.0b x2 (Max. 4096x2160@60Hz) DP 1.4 x2 (max. 4096x2304@60Hz) Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP)) |
| Disk support | M.2 M-key x1 (2242/2280), PCIe Gen.4 x4 interface support NVMe SSD |

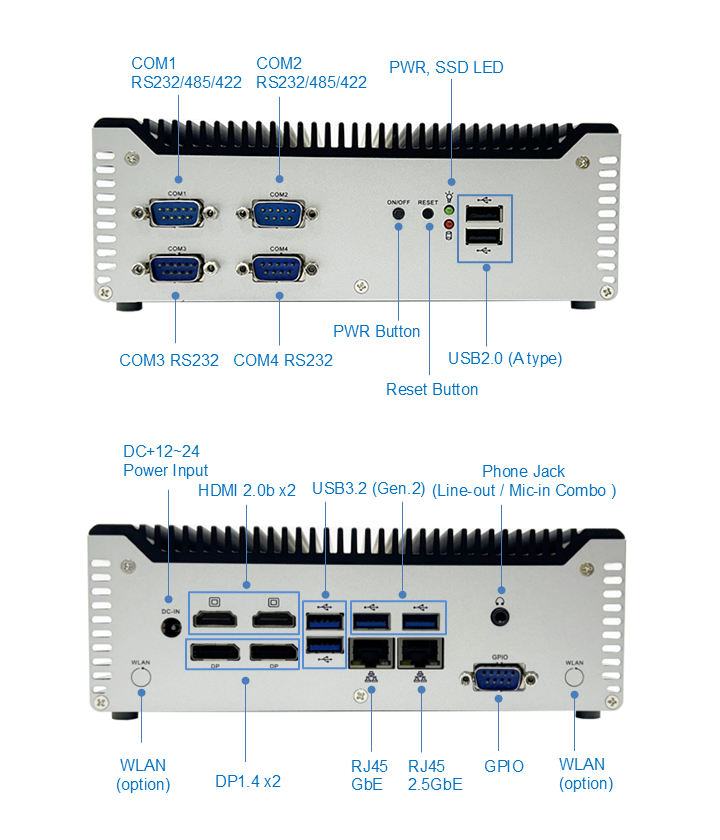

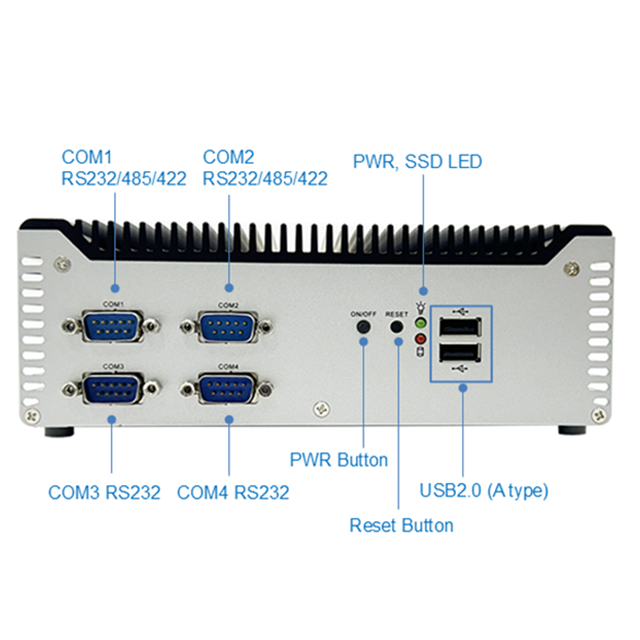

| Serial ports | Front: COM x4 (RS232/485/422 x2, RS232 x2) Rear: GPIO x1 |
| Ethernet | Intel® i219-LM 1.0GbE, i226 2.5GbE (Built-in PXE diskless boot) |

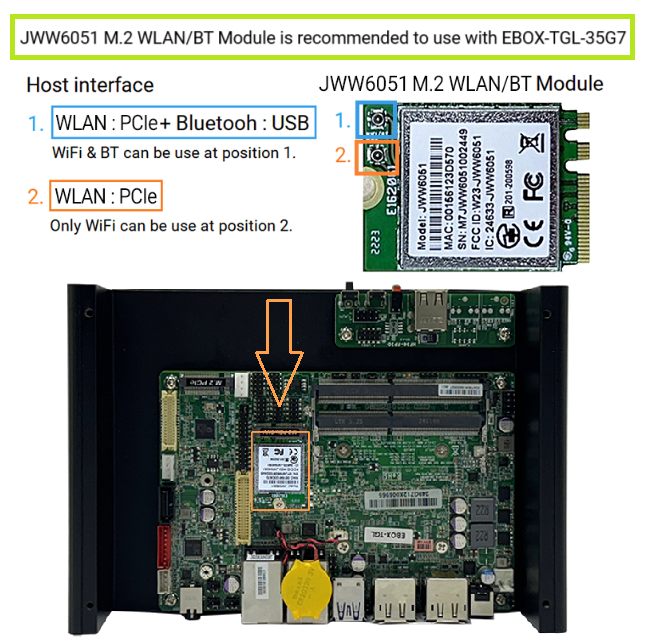

| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT |
| Audio | HD Audio Realtek ALC888S-VD2 |

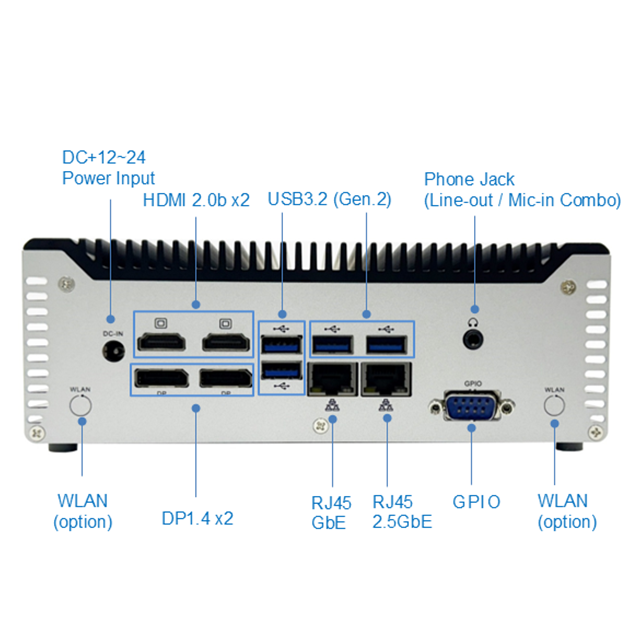

| USB | Front: USB 2.0 x2 Rear: USB 3.2 (Gen2) x4 |
| Auto Power On | Support |
| Power requirement | DC +12~24V Power adapter only (2.5ø) |

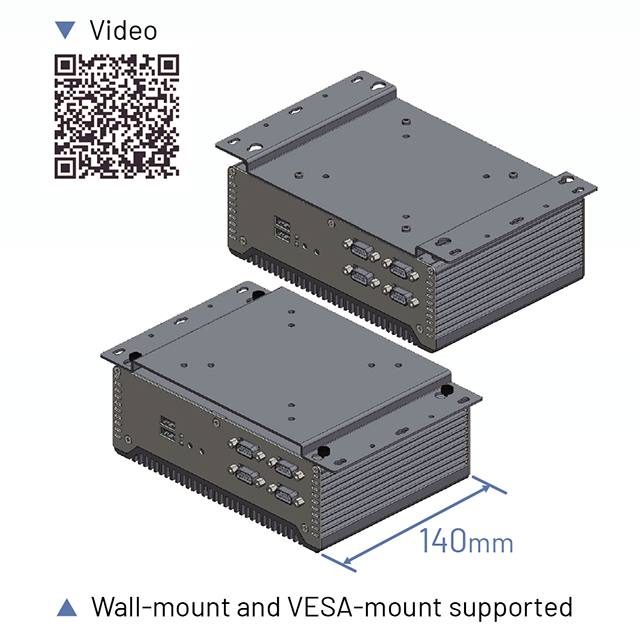

| Dimensions | 193.2 x 140 x 67mm |
| Net Weight | 2.2kgs |
| Operation Temperature | -20~+60°C |
| Certifications | CE, UKCA, FCC, VCCI |
| OS Support | Windows 11 & IoT, Windows 10 & IoT, Linux |
• Intel® Tiger Lake i5-1135G7 Processor
• DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
• HDMI 2.0 x2 (Max. 4096x2160@60Hz)
• DP 1.4 x2 (Max. 4096x2304@60Hz)
• Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP))
• M.2 M-key x1 (2242/2280), PCIe Gen.4 x4 interface support NVMe SSD
• M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
• COM1/COM2 RS232/485/422
• COM3/COM4 RS232
• DC Jack power input +12V~24V power adapter
• Operating Temperature -20~+60°C

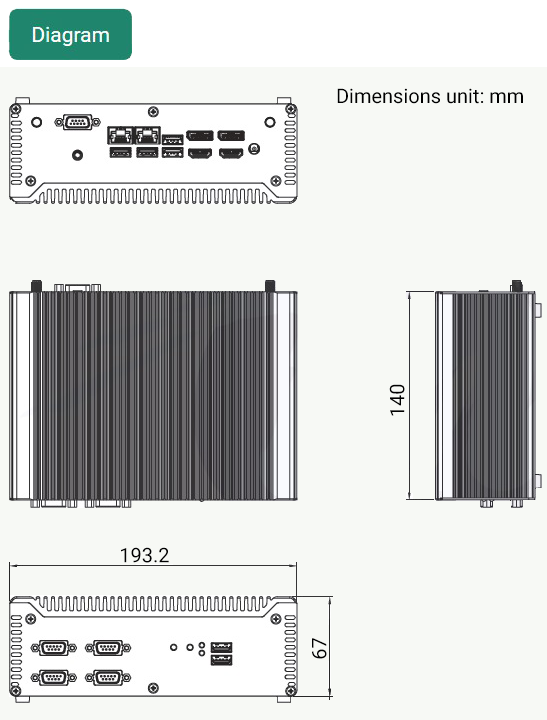

Dimensions unit: mm
• Power consumption Max. Load Wattage: 69.7W
