EBOX-335xDX3

EBOX-3350DX3
EBOX-3350DX3-AP
EBOX-3350DX3-C2
EBOX-3350DX3-C2AP
EBOX-3352DX3
EBOX-3352DX3-AP
EBOX-3352DX3-C2
EBOX-3352DX3-C2AP

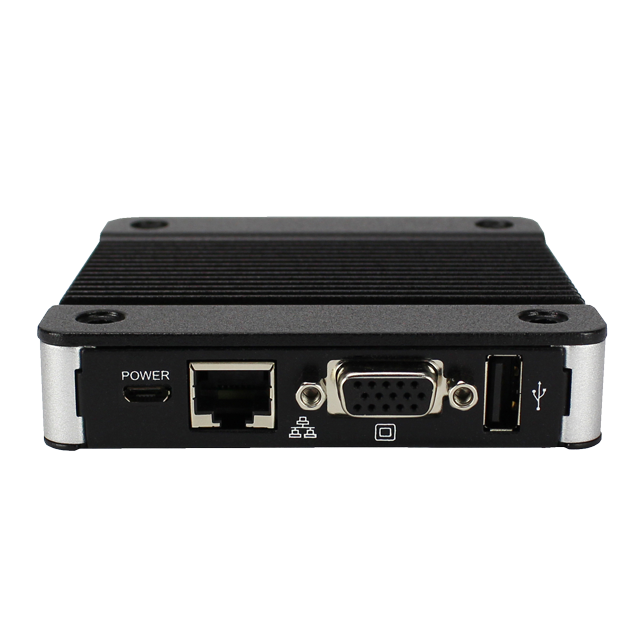

Integrates a fanless, 32-bit x86 Vortex86DX3 Dual core 1.0GHz SoC and 1GB/2GB DDR3 RAM. Supports: Dual RS-232 ports, 75 x 75mm VESA mounts, and Auto Power On.

Download
Processor DM&P 32-bit x86 Dual Core Vortex86DX3 1.0GHz SoC
BIOS AMI BIOS
Memory 1GB/2GB DDR3-1600MHz onboard
VGA Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1080 pixels)
Ethernet RDC R6040 10/100 Mbps LAN x1 (RJ-45 connector, Built-in PXE diskless boot)
USB USB V2.0 x3 (Front x2, Rear x1)
HD Audio Realtek ALC262VD Mic-in & Line-out
SD card slot SD Slot x1 IDE Primary Channel (Internal SD slot x1 Optional)
RS-232 D-Sub 9-pin connector x2
Auto Power On Support
Power requirement DC +5V/2A
Dimensions 95 x 95 x 20mm/95 x 95 x 35mm//VESA 75 x 75mm Support
Net Weight 277g/350g
Operation Temperature 0~60℃
Certifications CE, FCC, VCCI
OS Support Windows 7, WES7, Windows XP, XPe, CE6.0, Compact 7 and Linux
Model Type RAM 10/100 Mbps LAN RS-232 Auto Power On Operation
Temperature
EBOX-3350DX3 1GB DDR3 1x     0~60℃
EBOX-3350DX3-AP 1GB DDR3 1x   Support 0~60℃
EBOX-3350DX3-C2 1GB DDR3 1x 2x   0~60℃
EBOX-3350DX3-C2AP 1GB DDR3 1x 2x Support 0~60℃
EBOX-3352DX3 2GB DDR3 1x     0~60℃
EBOX-3352DX3-AP 2GB DDR3 1x   Support 0~60℃
EBOX-3352DX3-C2 2GB DDR3 1x 2x   0~60℃
EBOX-3352DX3-C2AP 2GB DDR3 1x 2x Support 0~60℃
Model Type DRAM CPU LAN COM Auto Power On Wide Temperature
EB-335 0:
1GB
DX3:
Vortex86DX3
GL:
GbE LAN x1
C2:
RS-232 x2
AP:
Support
W:
Support
  2:
2GB
    None
LAN x1
None
No COM
None
Not support
None
Not support

The Vortex86 SoC Series are 32-bit x86-architecture microprocessors that are compatible with Windows, Linux and most popular 32-bit Real Time Operating Systems. The CPU clock ranges from a single core 300MHz to dual core 1GHz, and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB ...etc, and most of the legacy I/O interface into one single BGA package.

Website: http://www.vortex86.com/
