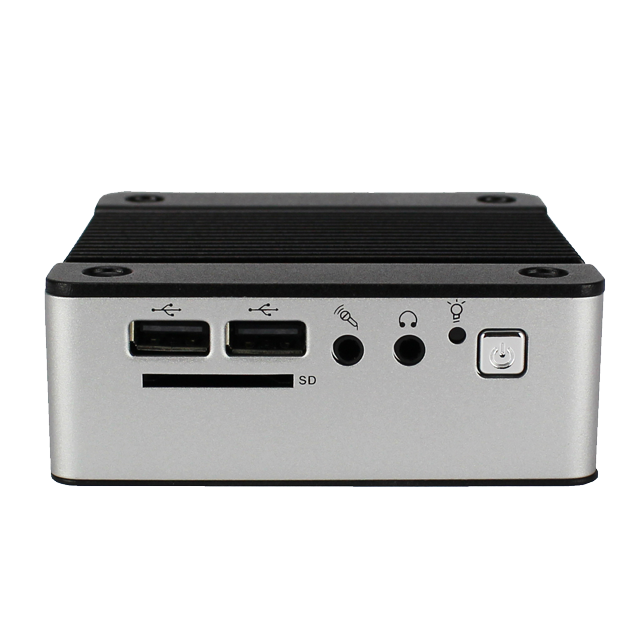

Integrates a fanless, 32-bit, x86, Vortex86DX3 Dual-core 1.0GHz SoC and 1GB/2GB DDR3 RAM onboard. Dual RS-232,
75x75mm VESA mounts, DIN Rail, Auto Power On, GbE LAN and operation temperature range -20~+70℃ support.
Download
| Processor | DM&P 32-bit x86 Vortex86DX3 Dual-core 1.0GHz SoC |
|---|---|
| Memory | 1GB/2GB DDR3-1600MHz onboard |
| BIOS | AMI BIOS |
| Display | VGA Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1080 pixels) |
| Disk support | SD Slot x1 IDE Primary Channel/Internal SD x1 (Optional) |
| Serial ports | DB9 COM ports x2 (MAX. RS-232 x2) |
| Ethernet | Realtek 8111F GbE x1 |
| Audio | HD Audio Realtek ALC262VD Mic-in & Line-out |
| USB | USB V2.0 x3 (Front x2, Rear x1) |
| Auto Power On | Support |
| Power requirement | DC +5V/2A |
| Dimensions | 95 x 95 x 35mm//VESA 75 x 75mm Support |
| Net Weight | 350g |
| Operation Temperature | 0~60℃/-20~+70℃ |
| Certifications | FCC, CE, UKCA, VCCI |
| OS Support | Windows 7, WES7, Windows XP, XPe, CE6.0, Compact 7 and Linux |
Enlarge Fullscreen Mode to click the hyperlink for video
Dimensions unit: mm
The Vortex86 SoC Series are 32-bit x86-architecture microprocessors that are compatible with Windows, Linux and most popular 32-bit Real Time Operating Systems. The CPU clock ranges from a single core 300MHz to dual core 1GHz, and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB, etc., most of the legacy I/O interface into one single BGA package.
Website: http://www.vortex86.com/
