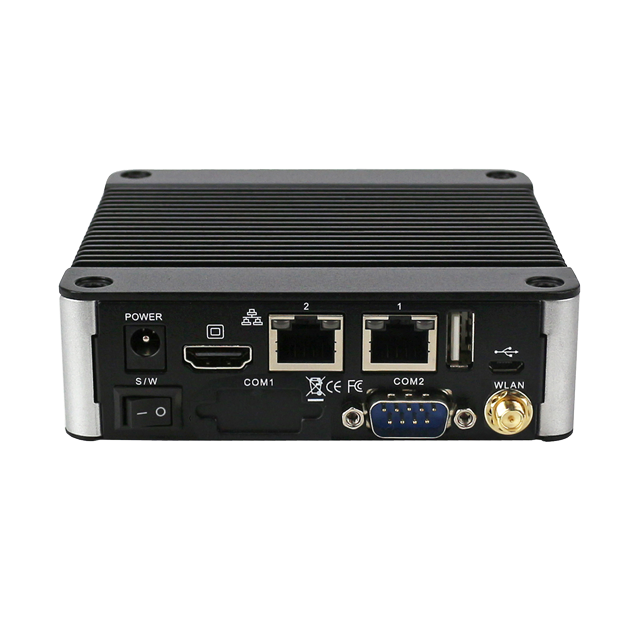

EBOX-IMX8MM w/WiFi & BT

EB-8MM-216M-L2C2BN
EB-8MM-216M-L2F4BN
EB-8MM-216M-L1C2BN
EB-8MM-216M-L1F4BN

This Series is equipped with NXP i.MX8M Mini ARM Cortex-A53 processor, two RS-232 or RS-485 ports combine with LAN x1, LAN x2, WiFi/BT onboard and more.

Download
Processor NXP i.MX8M Mini Quad-core 1.6 GHz ARM Cortex-A53 processor
Memory 1GB to 4GB LPDDR4 onboard
Display HDMI 1.3 (MAX.1920 x 1080 pixels)
Disk support 8GB to 64GB eMMC MLC/SLC onboard
Micro SD Slot x1 (Micro SD, SDXC)
Serial ports DB9 COM ports x3 (RS-232/485 x2, Console x1)
Ethernet RJ45 x2 (Intel I210 GbE x1/CPU GbE x1)
mPCIe Full-size Mini PCIe x1
Expansion WiFi 802.11b/g/n & BT4.1 Combo 2.4G (Broadcom 43438)
Audio HD Audio Mic-in & Line-out (WM8960)
USB USB 2.0 x3 (Front x2 + Rear x1)
Power requirement DC +12V~+36V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 700g
Operation Temperature 0~60℃
Certifications FCC, CE, UKCA, VCCI
OS Support Android 10, Android 9, Yocto 3.0 (Zeus), Yocto 2.5 (Sumo) and Mainline Linux Kernel Support




Enlarge Fullscreen Mode to click the hyperlink for video

Dimensions unit: mm



Model Type DRAM & eMMC LAN RS-232 RS-485 Console WiFi/BT Temperature
EB-8MM
2GB LPDDR4 RAM &
16GB eMMC MLC onboard
1x 2x   1x Included 0~60℃
1x   2x 1x Included 0~60℃
2x 2x   1x Included 0~60℃
2x   2x 1x Included 0~60℃
Model Type CPU DRAM eMMC MLC/SLC LAN D-Sub 9-pin I/O WiFi/BT Temperature
EB 8MM 1: 1GB 08: 8GB M: MLC L1: LAN x1 C2: RS-232 x2/Console x1 B: Included N: 0~60℃
    NXP i.MX8M Mini 2: 2GB 16: 16GB S: SLC L2: LAN x2 F4: RS-485 x2/Console x1 N: Excluded  W: -40~+80℃
      3: 3GB 32: 32GB (eMMC)
      4: 4GB 64: 64GB
