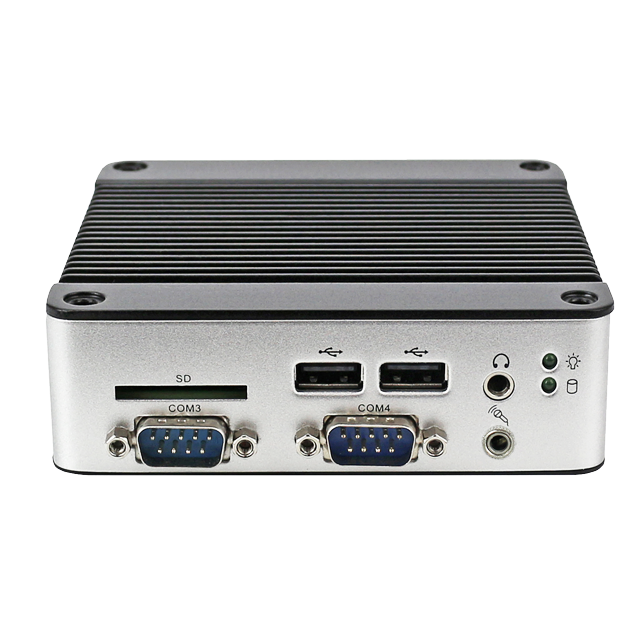

EBOX-IMX8MM w/Dual LAN

EB-8MM-216M-L2C2BN
EB-8MM-216M-L2C2NN
EB-8MM-216M-L2F4BN
EB-8MM-216M-L2F4NN

This Series is equipped with NXP i.MX8M Mini ARM Cortex-A53 processor, 2 Giga LAN ports with RS232/485 port x2 combine with console port x1.

Download
Processor NXP i.MX8M Mini Quad-core 1.6 GHz ARM Cortex-A53 processor
Memory 1GB to 4GB LPDDR4 onboard
Display HDMI 1.3 (MAX.1920 x 1080 pixels)
Disk support 8GB to 64GB eMMC MLC/SLC onboard
Micro SD Slot x1 (Micro SD, SDXC)
Serial ports DB9 COM ports x3 (RS232/485 x2, Console x1)
Ethernet RJ45 x2 (Intel I210 GbE x1/CPU GbE x1)
Expansion WLAN 802.11b/g/n & BT4.1 Combo 2.4G (Broadcom 43438)
Audio HD Audio Mic-in & Line-out (WM8960)
USB USB 2.0 x3 (Front x2 + Rear x1)
Power requirement DC +12V~+36V
Dimensions 115 x 115 x 35mm/DIN Rail Support (Optional)
Net Weight 700g
Operation Temperature 0~60℃
Certifications FCC, CE, UKCA, VCCI
OS Support Android 10, 9; Yocto 4.0, 3.3, 3.0, 2.5 and Mainline Linux kernel supported




Enlarge Fullscreen Mode to click the hyperlink for video

Dimensions unit: mm



Model Type DRAM & eMMC LAN RS232 RS485 Console WLAN/BT Temperature
EB-8MM
2GB LPDDR4 RAM &
16GB eMMC MLC onboard
2x 2x   1x Included 0~60℃
2x 2x   1x Excluded 0~60℃
2x   2x 1x Excluded 0~60℃
Model Type CPU DRAM eMMC MLC/SLC LAN D-Sub 9-pin I/O WLAN/BT Temperature
EB 8MM 1: 1GB 08: 8GB M: MLC L1: LAN x1 C2: RS232 x2/Console x1 B: Included N: 0~60℃
    NXP i.MX8M Mini 2: 2GB 16: 16GB S: SLC L2: LAN x2 F4: RS485 x2/Console x1 N: Excluded  W: -40~+80℃
      3: 3GB 32: 32GB (eMMC)
      4: 4GB 64: 64GB
