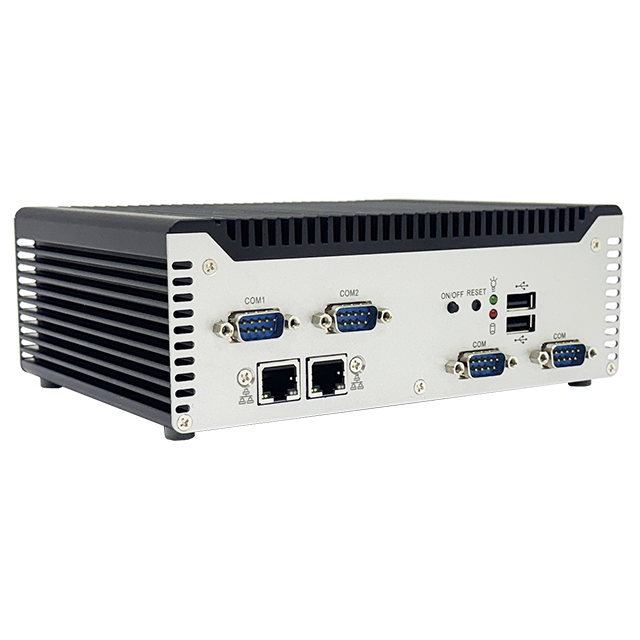

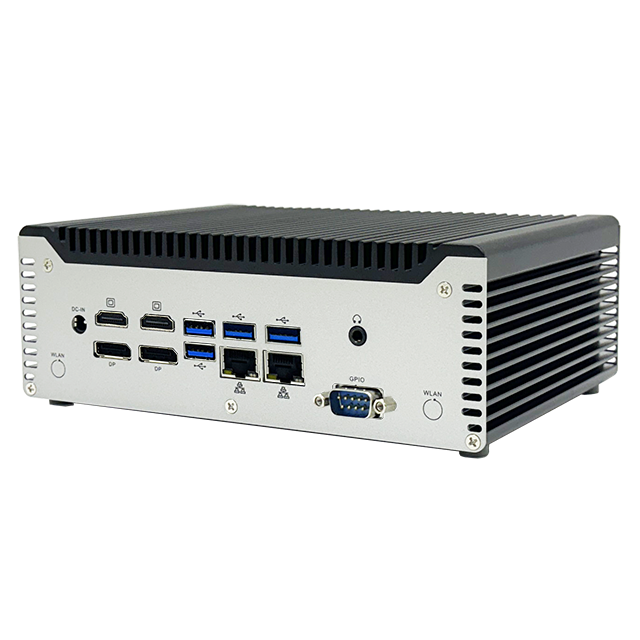

EBOX-TGL-35G7-L4 Fanless Box PC

EBOX-TGL-35G7-L4

This fanless embedded computer integrates the Intel® Tiger Lake i5 1135G7 Processor (2.40 GHz) and supports up to 64 GB DDR4 3200 memory in dual channel SO DIMMs. With two HDMI 2.0 and two DP 1.4 ports, it can drive up to four 4K HDR displays or one 8K SDR display.

Specially built for enhanced networking, it comes with four RJ 45 LAN ports (including dual 2.5 GbE) to support network redundancy, segmented networks, or multiple device connections. Combined with wide temperature capability ( 20 °C to +60 °C), +12 V to +24 V DC input, and rich I/O, it is an excellent choice for industrial monitoring and smart factory network solutions.

Download
Processor Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz)
Memory DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
BIOS AMI BIOS

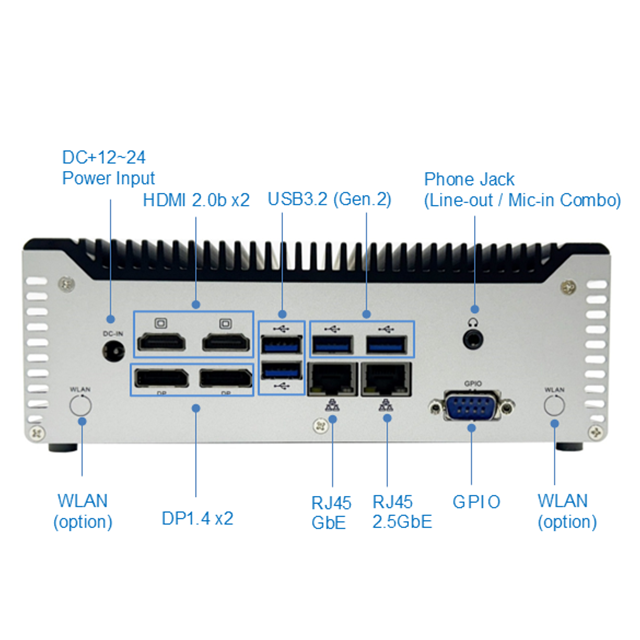

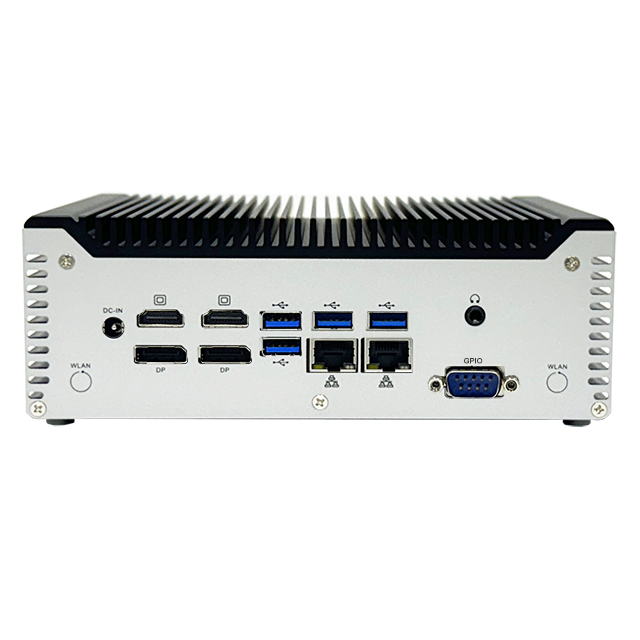

Display HDMI 2.0b x2 (Max. 4096x2160@60Hz)
DP 1.4 x2 (max. 4096x2304@60Hz)
Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP))
Disk support SATAIII x1 (2.5”SATA SSD, SATA DOM, SATA SLIM DOM)

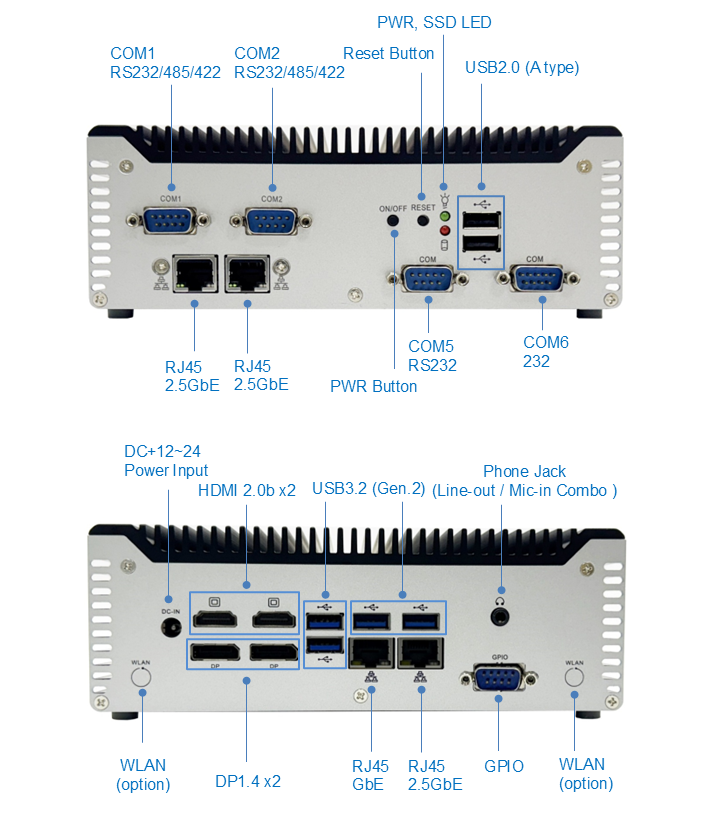

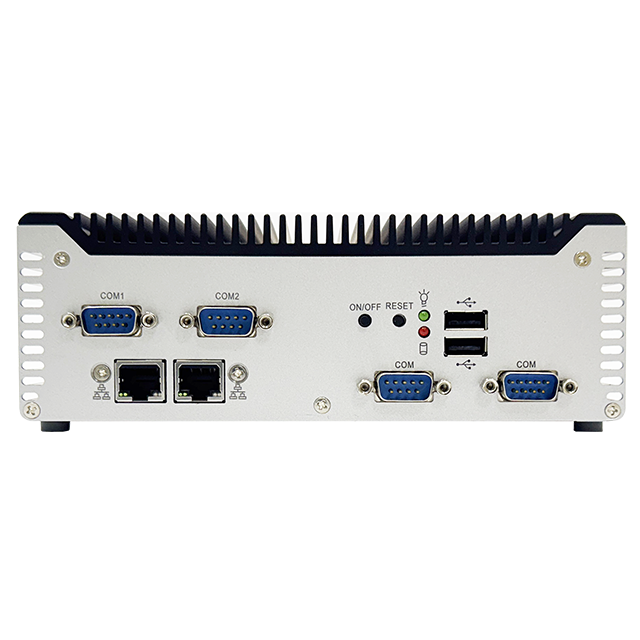

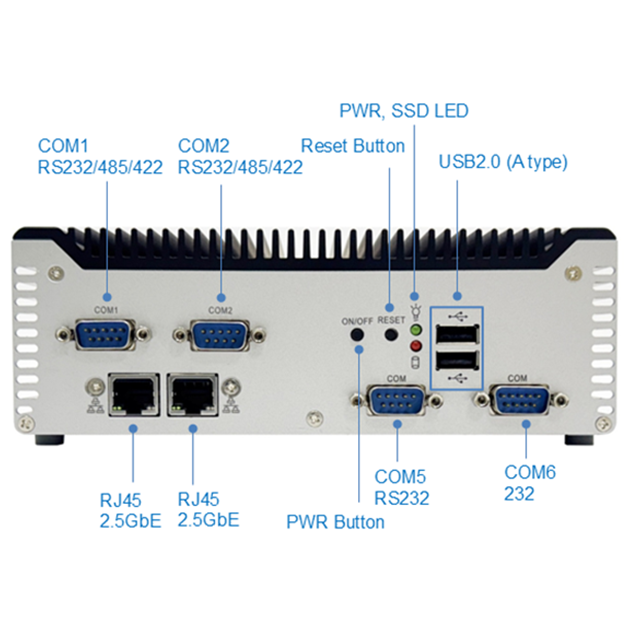

Serial ports Front: COM x4 (RS232/485/422 x2, RS232 x2)
Rear: GPIO x1
Ethernet Intel® i219-LM 1.0GbE x1, i226 2.5GbE x3
(Built-in PXE diskless boot)
Expansion M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
Audio HD Audio Realtek ALC888S-VD2
USB Front: USB 2.0 x2
Rear: USB 3.2 (Gen2) x4
Auto Power On Support
Power requirement DC +12~24V Power adapter only (2.5ø)
Dimensions 193.2 x 140 x 67mm
Net Weight 2.2kgs
Operation Temperature -20~+60°C
Certifications CE, UKCA, FCC, VCCI
OS Support Windows 11 & IoT, Windows 10 & IoT, Linux

• Intel® Tiger Lake i5-1135G7 Processor
• DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
• HDMI 2.0 x2 (Max. 4096x2160@60Hz)
• DP 1.4 x2 (Max. 4096x2304@60Hz)
• Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP))
• M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
• SATAIII x1 (2.5”SATA SSD, SATA DOM)
• COM1/COM2 RS232/485/422
• COM3/COM4 RS232
• Intel® i219-LM 1.0GbE x1, i226 2.5GbE x3
• DC Jack power input +12V~24V power adapter
• Operating Temperature -20~+60°C

                                                                                                                                                                          Dimensions unit: mm

  Product number   Description
  EBOX-TGL-35G7   Intel Tiger Lake i5-1135G7 Fanless Box PC w/ COM x4, LAN x2
  EBOX-TGL-35G7-C6   Intel Tiger Lake i5-1135G7 Fanless Box PC w/ COM x6, LAN x2
  EBOX-TGL-35G7-MUX8   Intel Tiger Lake i5-1135G7 Fanless Box PC w/ COM x8, LAN x2
  EBOX-TGL-35G7-L4   Intel Tiger Lake i5-1135G7 Fanless Box PC w/ COM x4, LAN x4



  Optional product number   Description
  POWER-90W-TGL   AC-DC power adapter DC12V@7.5A (AC 100~240V Input)
  POWERCABLE(A)(G)(EN)(AU)   Power cord US/EU/UK/AU&NZ types

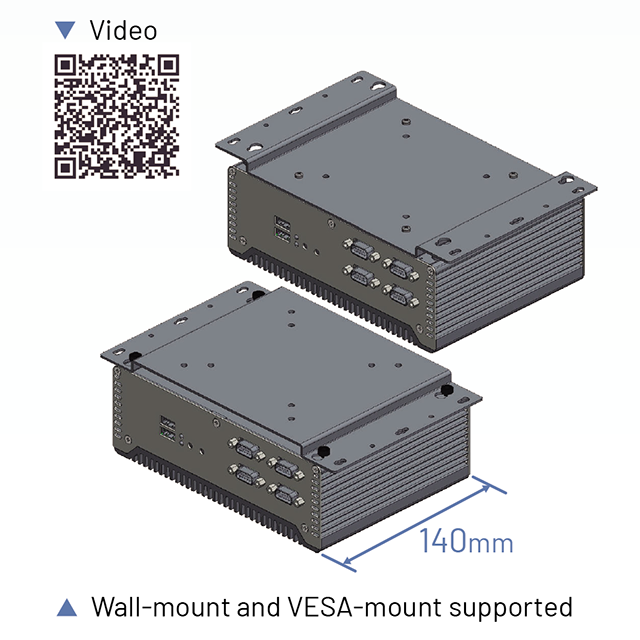

  CASE-35-VESA

   VESA Rack
   JWW6051   EmWicon JWW6051 M.2 WLAN/BT module



             • Power consumption Max. Load Wattage: 69.7W
